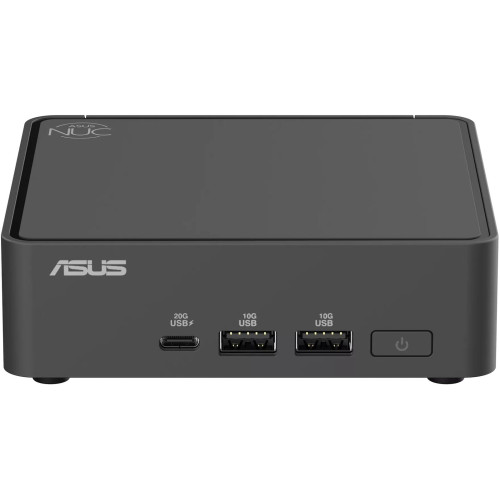

Asus NUC 15 Pro Slim L10 Mini PC, Core 7 240H 5.2GHz, 16GB RAM, 500GB SSD, Win 11 Pro
- Brand: Asus
- Product Code: ASUS NUC15-C7T16T500W11P [#1]
- sku: ASUS NUC15-C7T16T500W11P
- Reward Points: 107
- Availability: Out Of Stock
R21,308.25 inc. VAT
- Ex VAT: R18,528.91
- Price in reward points: 21309
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
Overview Summary:
The ASUS NUC 15 Pro Slim Mini PC delivers powerful desktop performance in a compact form factor, making it an excellent choice for business users, home offices and professional workspaces. Equipped with an Intel Core 7 240H processor, 16GB DDR5 memory, a fast 500GB NVMe SSD and Windows 11 Pro, it provides responsive performance for multitasking, productivity and everyday computing.Its compact design fits neatly into any workspace while offering modern connectivity including Thunderbolt 4, HDMI 2.1, Wi-Fi 7, Bluetooth 5.4 and 2.5Gb Ethernet. Buy now for a reliable, space-saving desktop solution that is ready for demanding business and office environments, or shop now to upgrade your workspace.
Performance tier: High Performance
Uses: Business computing, office productivity, multitasking, AI-enhanced workloads, digital signage, kiosk systems, edge computing, remote work, home office, multi-display workstations
Overview:
ASUS NUC 15 Pro Slim L10 Mini PC Intel Core 7 240H with 16GB RAM and 500GB SSD
The ASUS NUC 15 Pro Slim L10 Mini PC delivers powerful desktop-class performance in an ultra-compact form factor designed for modern business environments, edge computing, digital signage, and professional productivity. Powered by the Intel Core 7 240H processor with 10 cores and turbo speeds up to 5.2GHz, this mini PC provides responsive performance for demanding multitasking, office applications, content creation, and AI-enhanced workloads.
With 16GB DDR5 memory, a fast 500GB PCIe M.2 SSD, Intel Graphics, Wi-Fi, Bluetooth, and Windows 11 Pro, the ASUS NUC 15 Pro offers a complete ready-to-use computing solution. The compact chassis makes it ideal for space-saving installations while still providing extensive connectivity options including Thunderbolt 4, dual HDMI 2.1 outputs, USB 3.2 ports, and 2.5Gb Ethernet.
The ASUS NUC15-C7T16T500W11P is built for businesses and professionals who need reliable performance, flexible deployment options, and advanced connectivity in a small footprint.
Description:
The ASUS NUC 15 Pro Slim L10 Mini PC combines next-generation processing power, efficient thermal management, and versatile expansion options in a compact design. Featuring Intel Core Ultra-inspired platform technologies, DDR5 memory support, fast PCIe storage, and Intel Graphics, it provides smooth performance for productivity, collaboration, commercial applications, and edge computing environments.
Its small 0.48L chassis supports easy upgrades and flexible mounting options, while advanced security features and enterprise-ready management capabilities make it suitable for offices, retail systems, kiosks, healthcare applications, and professional workspaces.
Features:
Compact AI Ready Mini PC for Modern Workloads
The ASUS NUC 15 Pro is designed to support the growing demand for AI-enabled computing and efficient business solutions. Powered by the Intel Core 7 240H processor, this model provides excellent responsiveness with 6 performance cores and 4 efficient cores, delivering the balance of speed and power efficiency required for everyday professional workloads.
Key capabilities include:
- Intel Core 7 240H processor with 10 cores and turbo boost speeds up to 5.2GHz
- Intel Graphics for smooth visual performance and multimedia tasks
- Dedicated AI acceleration support through modern Intel processing technologies
- 16GB DDR5 RAM for fast multitasking performance
- 500GB PCIe M.2 SSD for quick boot times and responsive storage
High Speed Memory and Storage Performance
Built for demanding workflows, the ASUS NUC 15 Pro Slim supports high-speed DDR5 memory technology and PCIe NVMe storage for improved system responsiveness. The included 16GB DDR5 memory allows users to work efficiently across multiple applications, while the 500GB SSD provides fast access to files, applications, and operating system functions.
The tool-less chassis design makes upgrades and maintenance easier, allowing businesses to extend the lifespan of their mini PC as requirements change.
Flexible Connectivity for Professional Environments
Despite its compact size, the ASUS NUC 15 Pro provides a wide range of connection options for professional users, multi-display setups, and commercial installations.
Connectivity includes:
- 1x USB 3.2 Gen2x2 Type-C port on the front panel
- 2x USB 3.2 Gen2 Type-A ports on the front panel
- 2x Thunderbolt 4 Type-C ports with DisplayPort 2.1 support
- 1x additional USB 3.2 Gen2 Type-A port
- 1x USB 2.0 Type-A port
- 2x HDMI 2.1 outputs
- 1x RJ45 LAN port
- Wi-Fi and Bluetooth wireless connectivity
The system supports up to four 4K displays, making it suitable for professional workstations, control rooms, digital signage, and commercial environments.
Advanced Wireless Technology and Smart Connectivity
The ASUS NUC 15 Pro provides modern wireless connectivity with support for high-speed networking and improved device communication. Wi-Fi support enables fast data transfer and reliable connections in busy office environments, while Bluetooth allows easy connection of peripherals and accessories.
Bluetooth 5.4 technology improves wireless efficiency with enhanced transfer speeds and extended connection capability, making the system suitable for modern connected workplaces.
Business Security and Enterprise Management
Designed for professional deployment, the ASUS NUC 15 Pro includes advanced security technologies that help protect business data and simplify system management.
Security technologies include:
- Intel Platform Trust Technology for hardware-based security protection
- Support for Intel vPro on selected configurations
- Improved BIOS protection and secure device management
- Remote management capabilities for business environments
These features help organisations maintain secure, reliable, and manageable computing infrastructure.
Compact Design with Reliable Cooling
The ASUS NUC 15 Pro Slim L10 Mini PC features a compact 0.48L chassis designed for flexible installation. Its lightweight design allows it to fit into limited workspace environments while supporting VESA mounting for cleaner desk setups and commercial installations.
An advanced cooling system with dual heat pipes and intelligent thermal management helps maintain stable performance during extended workloads while keeping operating noise low.
Designed for Flexible Business Deployment
The ASUS NUC 15 Pro is suitable for a wide range of applications including office productivity, retail systems, healthcare equipment, industrial environments, education, and IoT deployments.
Its ASUS Power Sync capability allows compatible displays and devices to synchronise power control, making it useful for installations where direct access to the power button is limited.
Common applications include:
- Business desktops and compact workstations
- Digital signage systems
- Retail and kiosk solutions
- Conference room systems
- Edge computing environments
- Industrial and IoT applications
Durability and Long-Term Reliability
Built to meet demanding professional requirements, the ASUS NUC 15 Pro undergoes extensive testing for durability and dependable operation. The robust design helps ensure consistent performance across a variety of business environments.
The system combines efficient hardware design, reliable cooling, and flexible expansion options to provide a long-lasting compact computing platform.
Product SKU: ASUS NUC15-C7T16T500W11P
Technical specifications:
- Processor: Intel Core 7 240H Ten Core Processor
- Processor speed: Up to 5.2GHz Turbo Boost
- Cache: 24MB L3 Cache
- Graphics: Intel Graphics
- Memory: 16GB DDR5 RAM
- Storage: 500GB M.2 PCIe Solid State Drive
- Operating system: Windows 11 Pro 64-bit
- Wireless: Wi-Fi and Bluetooth
- Form factor: Slim Mini PC
- Ethernet: RJ45 LAN
- Display support: Dual HDMI 2.1 and Thunderbolt 4 with DisplayPort 2.1
- Front ports: 1x USB 3.2 Gen2x2 Type-C, 2x USB 3.2 Gen2 Type-A
- Rear ports: 2x Thunderbolt 4 Type-C, USB Type-A, USB 2.0, dual HDMI 2.1, LAN
Specifications:
| Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC , however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
| Specifications | |
| Product Code | ASUS NUC15-C7T16T500W11P |
| Project Code | NUC15CRK |
| Color | Black |
| OS Support | Windows 11 Home 64-bit |
| Windows 11 pro 64-bit | |
| CPU | Intel Core 7 Processor 240H, cTDP 40W |
| Intel Core 5 Processor 210H, cTDP 40W | |
| Intel Core 5 Processor 120U, cTDP 25W | |
| Intel Core 3 Processor 100U, cTDP 25W | |
| Chipset | Integrated |
| Graphics | Intel Arc 140T GPU |
| Memory | 2 x SO-DIMM, Up to DDR5-5600, 48GB*2 |
| Storage | 1 x M.2 2280 PCIe Gen5x4, supports 128GB~8TB NVMe SSD |
| 1 x M.2 2242 PCIe Gen4x4, supports 128GB~2TB NVMe SSD | |
| Wireless Network | Intel Wi-Fi 7 BE201 (Gig+), Bluetooth 5.4 |
| LAN | Intel Ethernet Controller I226-V, 2.5G (U9 285H , U7 255H , U5 255H) |
| Intel Ethernet Controller I226-LM, 2.5G (U5 235H(vPro) , U7 265H(vPro)) | |
| Audio | No Analog Audio Support - Digital Audio |
| TPM | fTPM |
| Card Reader | None |
| HDMI CEC | Yes, 2 ports on back panel |
| Front I/O Ports | 1 x USB 3.2 Gen2x2 Type-C |
| 2 x USB 3.2 Gen2 Type-A | |
| Back I/O Ports | 2 x Thunderbolt 4 Type-C w/ DisplayPort 2.1 |
| 1 x USB 3.2 Gen 2 Type-A | |
| 1 x USB 2.0 Type-A | |
| 2 x HDMI 2.1 (TMDS Compatible) | |
| 1 x RJ45 LAN | |
| 1 x DC-in | |
| Side I/O Ports | 1 x Kensington Lock |
| Power Supply | Power Adapter Meets DOE Level VI, efficiency >=88% |
| 19VDC, 6.32A, 120W Power Adapter | |
| *120U & 100U: | |
| 19VDC, 4.74A, 90W Power Adapter | |
| Product Dimensions (W x D x H) | 117mm x 112mm x 36.8mm |
| Product Weight | 514.8g |
| Color Box Dimensions (W x D x H) | 151mm x 183mm x 127mm |
| Packaged Weight | 1300g |
| Operating Temperature | 0degreesC - 40degreesC |
| Storage Temperature | -40degreesC to 60degreesC |
| Humidity | 0%-92% non-condensing |
| Noise Level (idle mode to full load mode) | 26dBA~45dBA |
| Accessories | AC Adapter+Power Cord |
| VESA Bracket and Screws | |
| Cable Clip | |
| Safety/Caution/Regulatory Insert | |
| Warranty Card | |
| Note | 1 Intel Arc GPU requires using 2 x SO-DIMM/CSO-DIMM |
| 2 Up to 7.1 multichannel (or 8-channel) digital audio on HDMI and DP Type C ports | |
| 3 Power cord included is region specific, and some SKUs do not include the power cord | |
