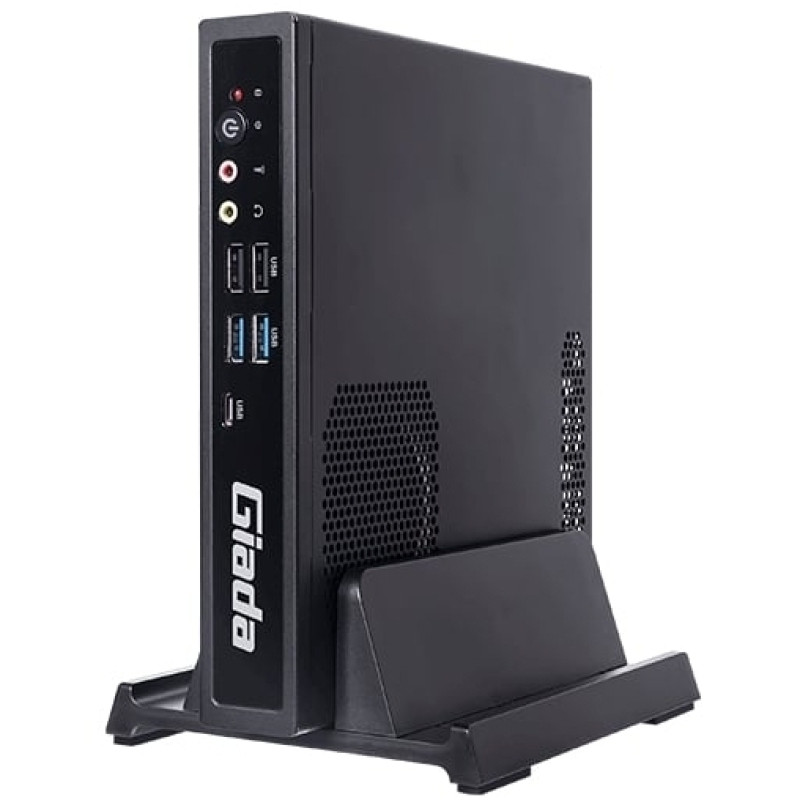

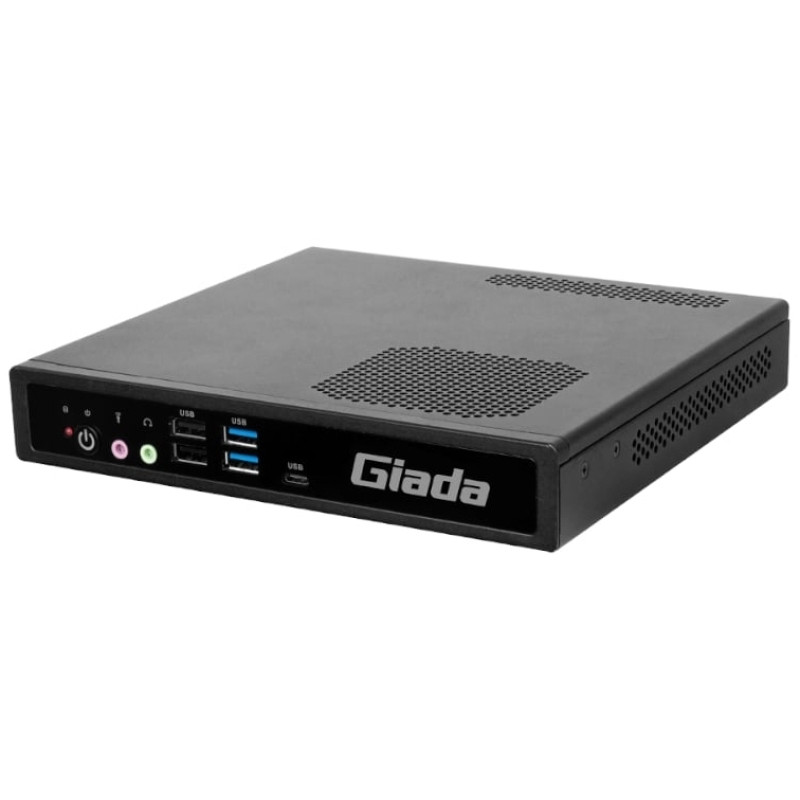

Giada BQ612 Mini PC Barebone, No CPU, No RAM, No SSD, No OS

Giada BQ612 Mini PC Barebone, Supports Intel LGA1700 Socket 12th/13th Gen Processor, 2x SO-DIMM Memory slots, 1x M.2 PCI-e SSD slot, 1x 2.5" SATA bay, 1x VGA, 1x HDMI, Realtek rtl 8111H Gigabit Ethernet, 2x RJ45, 1x USB Type-C 3.2 Gen1, 2x USB3.2 Gen1, 6x USB 2.0, 2x RS232 Serial Port, 1x mic-in, 1x audio-out

Overview:

GIADA BQ612 WITH H610 BAREBONE W/O CPU R
The GIADA BQ612 with H610 Barebone is a small yet powerful computer built to satisfy your demands. It has an Intel LGA1700 Socket, which is compatible with 12th/13th Gen processors and ensures high-performance computing. It has two DDR4-3200 MHz memory slots and is capable of handling multitasking and demanding tasks. The barebone has one HDMI port that supports 4K resolution for amazing images.

With 2 x RJ45 Gigabit LAN connections and 1 x E-Key M.2 (2230) slot for WiFi/BT, youll be able to stay connected in any setting. The GIADA BQ612 is distinguished by its lengthy life cycle, which ensures long-term performance and reliability for your computing demands. This barebone is ready to go, whether for business or play.

Note: CPU is not included.

Features:

• 1 x HDMI supporting 4K
• Intel LGA1700 Socket 12th/13th Gen. processors
• 2x DDR4-3200 MHz Memory
• 2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for WiFi/BT
• Long life cycle

WHATS IN THE BOX:

• Giada BQ612 with H610 barebones embedded PC - Black x1
• WiFi Antenna x2
• AC Power Adapter x1
• Power Cable x1
• User Manual x1

Specifications:

Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC , however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	BQ612-0000040N0G-GIA
Processor
CPU	Intel LGA1700 Socket 12th/13th Gen. processors
Turbo Frequency	by CPU
Chipset	H610/B660
Processing Units	by CPU
TDP	≤ 65 W
Memory
Type	2 x SO-DIMM DDR4-3200 MHz
Size	Up to 64 GB
Storage
Socket 1	1 x M-Key M.2 (2242/2280) for PCIe SSD
Socket 2	1 x 2.5" SATAIII (7+15 pin)
Graphics
GPU	Intel UHD Graphics 730/770
Graphic Engine	DirectX 12.0, OpenGL 4.5, OpenCL 3.0
VGA	1 x VGA (Max. 2048 x 1536 @60 Hz)
HDMI	1 x HDMI (Max. 4096 x 2160 @60 Hz)
Network
Controller	Realtek RTL 8111H Gigabit Ethernet
Interface	2 x RJ45
Wi-Fi/BT	1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
Mobile Network	3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot
I/O
USB	1 x USB Type-C3.2 Gen1 (H610), 2 x USB3.2 Gen1, 6 x USB2.0 (H610)
Serial Port	2 x RS232
Audio	1 x MIC-IN, 1 x AUDIO-OUT
Antenna	2 x Connector for Wi-Fi/BT
Button	1 x Power on, 1 x CLR-CMOS
System
TPM	Optional: TPM2.0
Watchdog Timer	Yes
Auto Power on	Yes
RTC	Set up independently every day
Remo on	Yes
Operation System
Windows	Windows 10 (64Bit), Windows 11 (64bit)
Linux	Linux Ubuntu (64bit)
Power
Power Type	DC-IN
Input Voltage	19V/4.74A
Environment
Operating Temperature	0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Relative Humidity	95% @ 45°C (non-condensing)
Certification	CE, FCC Class B
Construction	Metal
Colour	Black
Dimensions	20 x 18.5 x 3.5 cm
