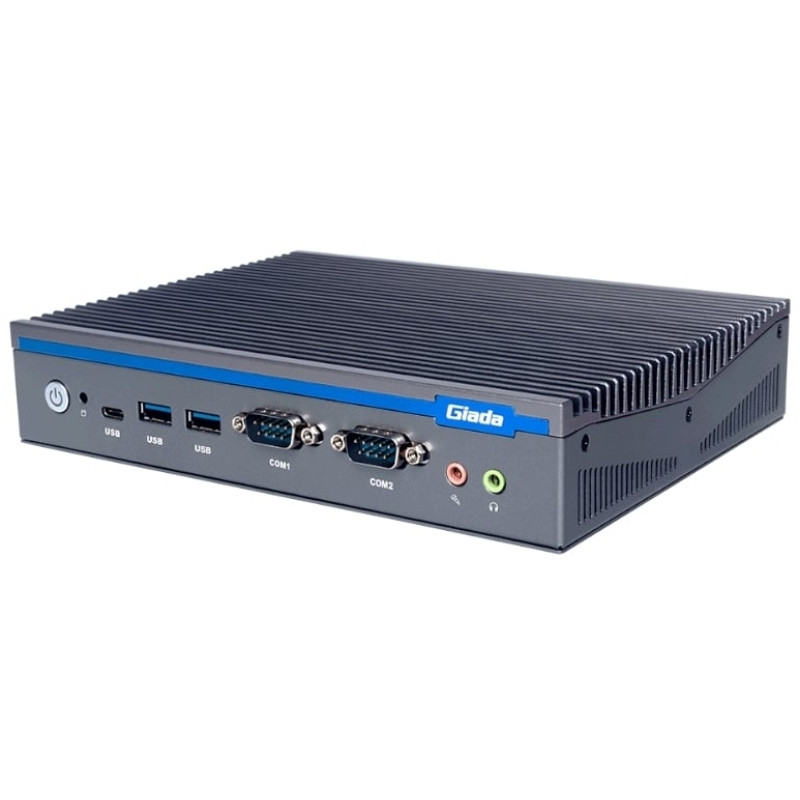

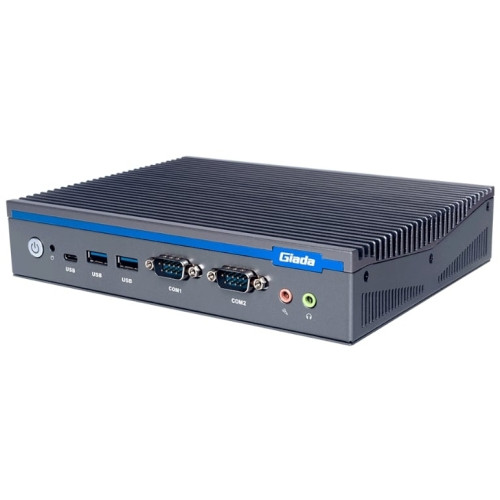

Giada DF612 Mini PC, i5-1235U 4.4GHz, No RAM, So SSD, Intel HD Graphics, No OS
- Brand: Giada
- Product Code: DF612-1235U40N0G-GIA [#56]
- sku: DF612-1235U40N0G-GIA
- Reward Points: 44
- Availability: In Stock ✓ Ready to ship!
- Qty available: 7
R8,778.26 inc. VAT
- Ex VAT: R7,633.27
- Price in reward points: 8779
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
Overview:
GIADA DF612 I5-1235U 2XDDR4 M.2 2XHDMI
The Giada DF612 model incorporates Intels 12th-Gen processors, specifically the i5-1235U. These processors offer a significant performance boost of 19 percent compared to the current 11th-gen "Rocket Lake" processors. The DF612 model is equipped with the Intel vPro and TPM 2.0 features, which provide enhanced productivity, remote manageability, and data security.
The DF612 model is compatible with Intel integrated Iris Xe GPU, specifically for Core i5 and i7 processors. The device has the capability to deliver a maximum resolution of 8K (7680 x 4320@60 Hz) through its DP1.4 port. It can support two 4K displays (4096 x 2304@60Hz) using its two HDMI2.0 ports. It is an excellent option for large-format displays and kiosks used 24/7.
The fanless design of a passive thermal cooling system reduces the failure rate and ensures that the device operates silently and remains dust-free. The Giada device is designed to be used in mission-critical applications.
Features:
- Intel Core i5-1235U processor
- 4 x HDMI, Supporting 4K Display
- 2 x SO-DIMM DDR4 Memory, Up to 64GB
- 1 x M-key M.2 (2242/2280 ) for SSD
- Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access
WHATS IN THE BOX:
- Giada DF612 Intel Core i5 Embedded Computer - Grey x1
- WiFi Antenna x1
- User Manual x1
Specifications:
| Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (http://www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
| Specifications | |
| Product Code | DF612-1235U40N0G-GIA |
| Processor | |
| CPU | Intel Core i5-1235U processor |
| Frequency | 3.30 GHz (Up to 4.40 GHz ) |
| Cores | 10 |
| Memory | |
| Type | DDR4-3200MHz |
| Socket | 2 x SO-DIMM |
| Max Size | 64GB |
| Graphics | |
| GPU | Intel UHD Graphics |
| Graphic Engine | DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC |

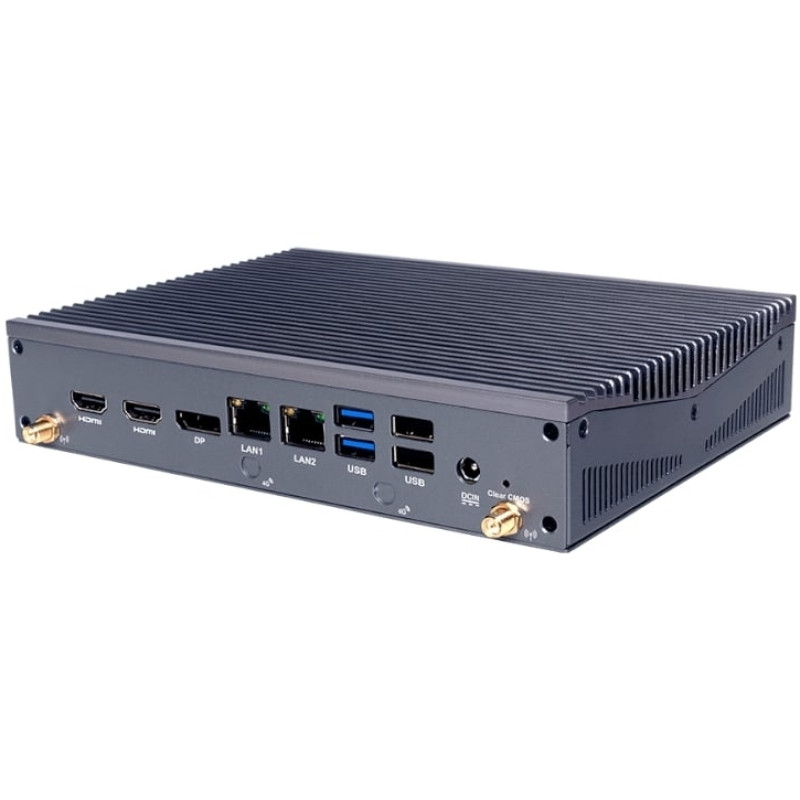

| HDMI | 4 x HDMI (Max.4096 x 2304 @60 Hz) |
| Network | |
| Controller | 1 x Intel i219LM Gigabit Ethernet, 1 x Realtek RTL8111H Gigabit Ethernet |
| Interface | 2 x RJ45 |
| Mobile Network | 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot |
| Wi-Fi/BT | 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi) |
| I/O | |
| USB | 4 x USB3.2 Gen2, 2 x USB2.0 |
| USB Type-C | 1 x USB Type-C3.2 Gen2 |
| Serial Port | 1 x RS232, 1 x RS232/422/485 |
| Audio | 1 x Mic-In, 1 x Audio-Out |
| Button | 1 x Power on, 1 x CLR-CMOS |
| Storage | |
| M.2 | 1 x M-key M.2 (2242/2280) for NVMe |
| JAHC Tech | |
| WatchDog Timer | Yes |
| Auto Power On | Yes |
| Operation System | |
| Windows | Windows 11 (64bit) |
| Linux | Linux Ubuntu (64bit) |
| Power | |
| Power Type | DC-IN |
| Input Voltage | DC-IN, 19 V/3.42 A |
| Environment | |
| Operating Temperature | 0°C ~ 40°C ( 32 °F ~ 104 °F ) at 0.7m/s Air Flow |
| Relative Humidity | 95%@45°C (non-condensing) |
| Certification | CE, FCC Class B, CCC |
| Mounting | Desk/Wall Mounting and VESA Mounting Kit (JZ183) |
| Construction | Metal |
| Colour | Black |
| Dimensions | 20 x 15 x 4.0 cm |
