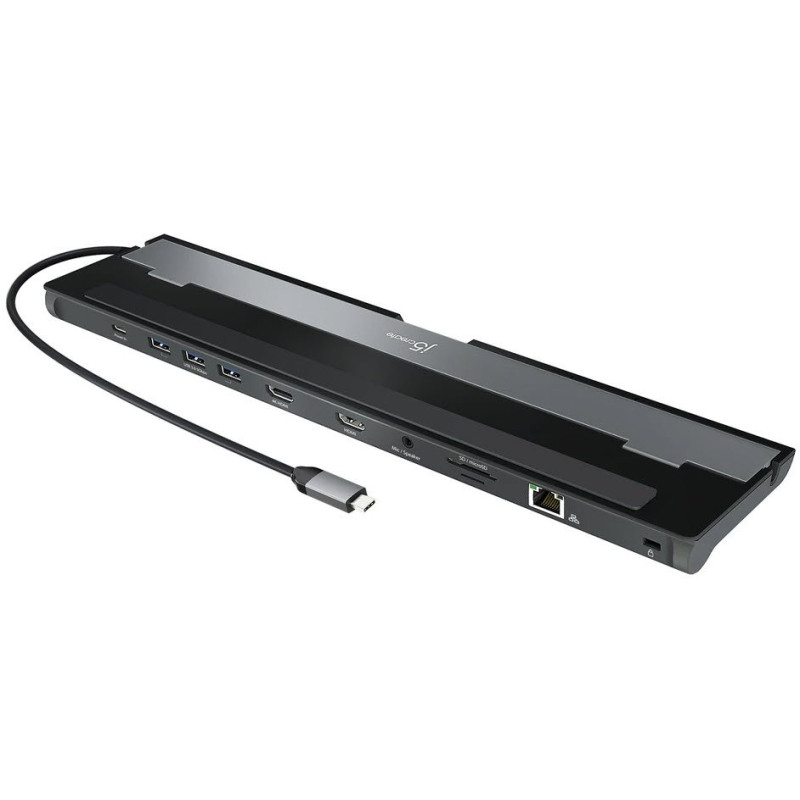

j5 Create JCD542 Dual Display Docking Station
- Brand: j5 create
- Product Code: DS-JCD542 [#23]
- sku: DS-JCD542
- Reward Points: 9
- Availability: In Stock ✓ Ready to ship!
- Qty available: 13
R1,733.59 inc. VAT
- Ex VAT: R1,507.47
- Price in reward points: 1734
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
Overview:
This dual display docking station adds dual HDMI™ monitors, with resolution support up to 4K (3840 x 2160) on one display and up to 2K (2048 x1152) or 1080p on the other display. You can also use your laptop screen for three displays in total, making it easy to access multiple applications at once.
This USB™ 3.0 docking station comes equipped with all the connections you need including three USB™ 3.0 ports, a RJ45 Gigabit Ethernet port, memory card reader/writer, combo audio jack, and a USB-C® port supporting up to 100W Power Delivery. It also includes a security lock slot to protect against theft, making it perfect for use in business organizations. With its slim and heat-dissipating design along with the double-sided cable storage compartment, this USB-C® dock ensures an easy connection regardless of your USB-C® port’s location and can easily fit into any workspace environment.
Features:
- Dual displays via HDMI™ outputs
- Up to 100W power pass-through to charge your laptop and power the connected peripherals when used with a USB-C® power adapter
- Connect and charge your USB™ devices with 3 x USB™ ports
- Reliable network connectivity via the Gigabit Ethernet port
- Direct access to SD™ & microSD™ memory cards for data storage and transfer
- 3.5mm audio jack to connect microphone/headphone
- Security lock slot for anti-theft protection
- Convenience setup with double-sided cable storage compartment
- Heat-eliminating design
Special Notes:
- A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
- The dock can connect to a USB-C® port that doesn’t support Power Delivery but it will not pass power through the connected device
- If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port for optimal performance
- To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0
- We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time
Specifications:
| Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC , however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
| Specifications | |
| Product Code | DS-JCD542 |
| Hardware | |
| Host Connector | USB-C Male |
| Video Output | 2 - HDMI Female |
| Power Source | Bus-powered |
| Network Interface | RJ45 (Gigabit Ethernet) |
| Audio Supported | Yes |
| Ports | 1 - USB-C Power Delivery 3.0 |
| 3 - USB 3.0 Type-A | |
| 1 - 4K HDMI | |
| 1 - 2K/1080p HDMI | |
| 1 - SD & microSD memory card reader/writer | |
| 1 - RJ45 Gigabit Ethernet | |
| 1 - 3.5 mm combo audio jack | |
| Performance | |
| Maximum Display Resolution | Dual Displays: |
| 3840 x 2160 and 2048 x 1152 / 1920 x 1080 | |
| Single Display: | |
| 3840 x 2160 | |
| Maximum Display Refresh Rate | 4K @ 30 Hz |
| 2K @ 60 Hz | |
| Maximum Data Transfer Rate | 5 Gbps |
| Displays Supported | 2 |
| Compatible Networks | 10/100/1000 Mbps |
| Audio Channel | 2.1 via HDMI / 3.5 mm Aux |
| Power | |
| Power Delivery | Up to 100W via USB-C |
| Power Consumption | ≤ 900 mA |
| Input Current | Up to 5A |
| Input Voltage | Up to 20V |
| Output Current | Up to 5A |
| Output Voltage | Up to 20V |
| Physical Specifications | |
| Color | Grey & Black |
| Enclosure Type | Aluminum |
| Cable Length | 1.48 ft (45 cm) |
| Product Height | 0.87 in. (21.98 mm) |
| Product Width | 3.25 in. (82.46 mm) |
| Product Depth | 13.79 in. (350.18 mm) |
| Product Weight | 10.79 oz (306 g) |
| Storage Temperature | 14 to 149°F (-10 to 65°C) |
| Storage Humidity | < 85% non-condensing |
| Operating Temperature | 32 to 118°F (0 to 48°C) |
| Operating Humidity | < 85% non-condensing |
