Gigabyte B860I AorusPro Wi-Fi Intel 12th / 13th / 14th Gen Socket LGA 1700 ITX Motherboard

Gigabyte B860I AorusPro Wi-Fi Intel 12th / 13th / 14th Gen Socket LGA 1700 ITX Motherboard, Intel B860 Express Chipset, 2x DDR5 DIMM Memory slots, 1x Intel Thunderbolt 4 connector (USB4 USB Type-C Port) supporting DisplayPort and Thunderbolt Video, 1x DisplayPort, 1x HDMI Port, Realtek 2.5GbE LAN Chip, Realtek Wi-Fi 7, Bluetooth 5.4, 1x PCI Express x16 slot supporting PCI-e 5.0 and running at x16, 2x M.2 connector supports up to PCI-e 5.0 x4/x2 SSD, 2x SATA 6Gb/s connectors, USB Type-C Port with USB 3.2 Gen 2 support, USB 3.2 Gen 2 Type-A Ports, USB 2.0/1.1 Ports, 1x Q-Flash Plus Button, 2x audio jacks, 1x Optical S/PDIF out connector

Overview:

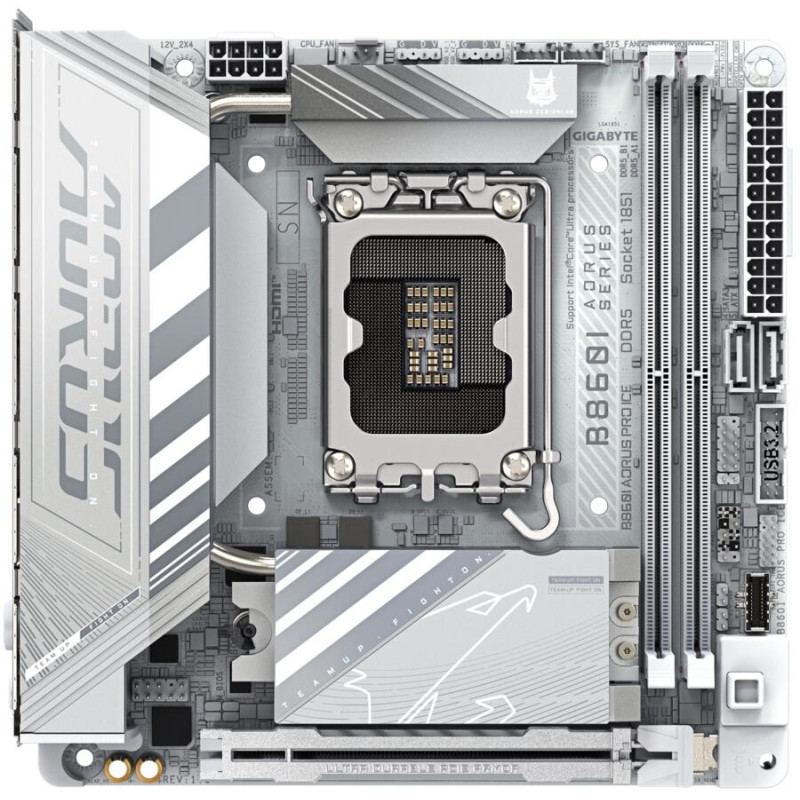

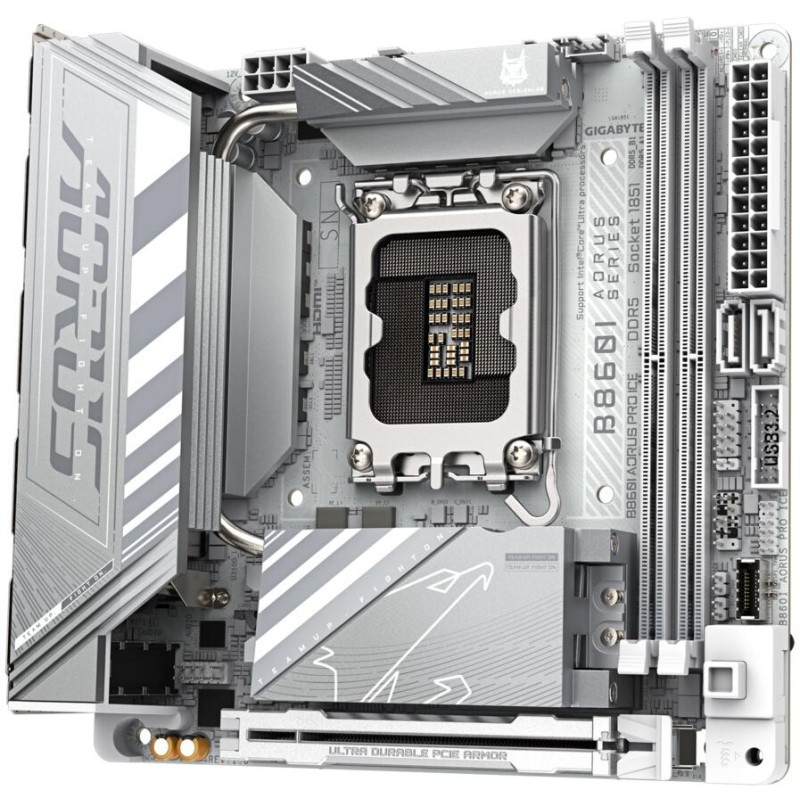

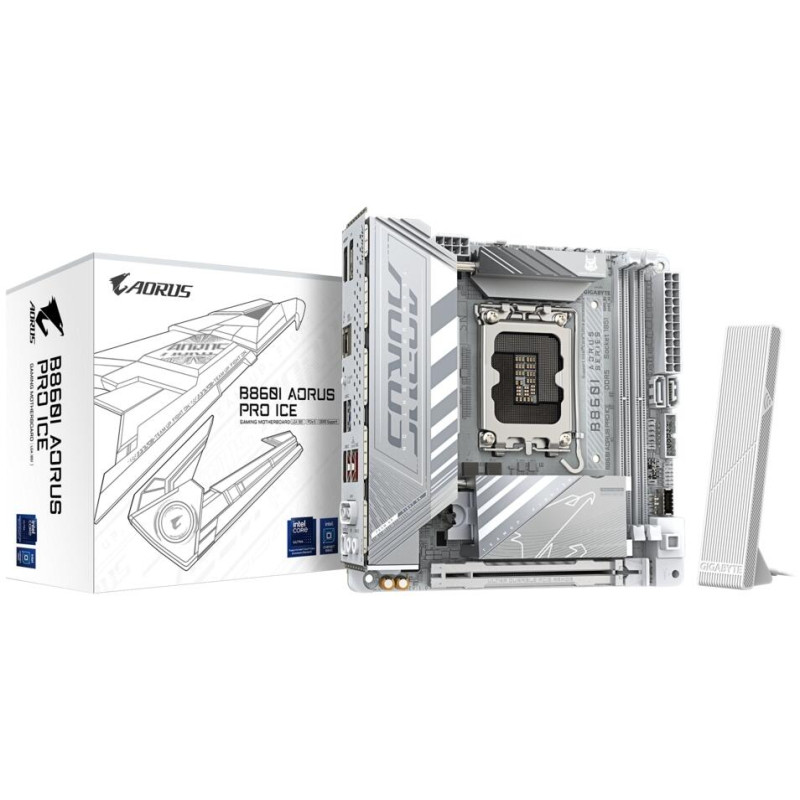

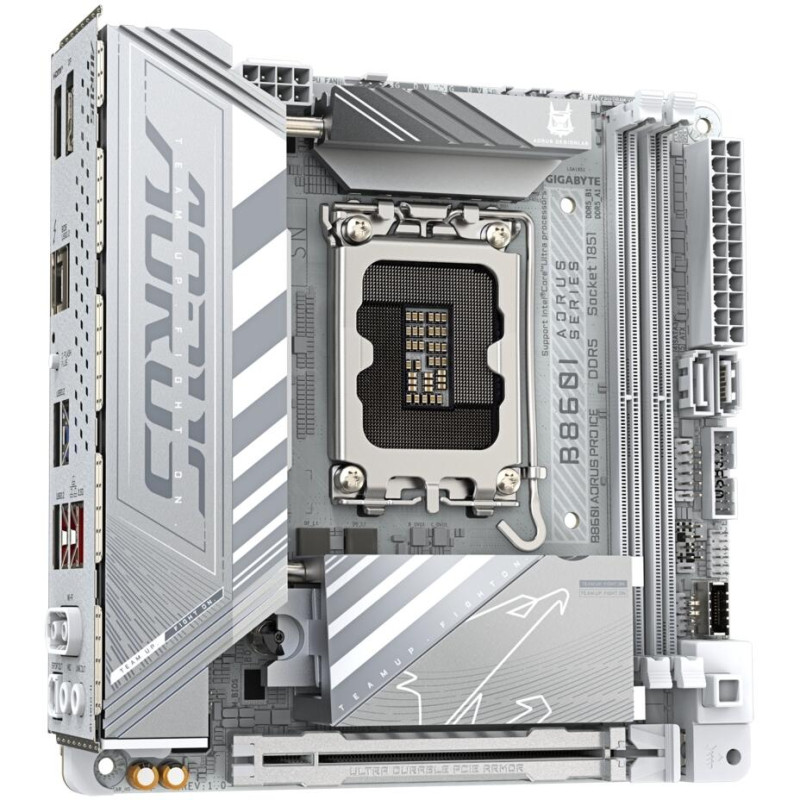

B860I AORUS PRO ICE

• Supports Intel Core Ultra processors (Series 2)
• Digital 8+1+2 phases VRM solution
• Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : ThunderBolt4 Type-C with DP-Alt, HDMI, DisplayPort

Features:

Infinite Memory Performance
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

EZ-Latch Designs
User-friendly designs simplifying the assembly process.

M.2 EZ-Latch Click
screwless installation for M.2 heatsink

All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

All-round Connectivity

• Native 40Gbps ThunderBolt4
• Wi-Fi 7
• 2.5GbE LAN
• More Connectivity info
• Hi-Fi Audio
• High-End Audio Capacitors
• Audio Noise Guard

Born from Ultra Durable
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.

PCIe UD Slot
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.

UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

Solid Pins
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.

Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

Specifications:

Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC , however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	MB-GB860IAPW+W
CPU	LGA1851 socket: Support for Intel Core Ultra Processors
	L3 cache varies with CPU
Chipset	Intel B860 Express Chipset
Memory	Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
	2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support:
	- 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputs When a Thunderbolt monitor is installed, the maximum resolutionsupported is 5120x2880@60 Hz with 24 bpp (single display output).When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
	* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors, " for more information.)
	* Support for DisplayPort 2.1 version and HDCP 2.3
	- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
	* Support for DisplayPort 2.1 version and HDCP 2.3
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	(Graphics specifications may vary depending on CPU support.)
	Support for up to triple-display at the same time
Audio	Realtek Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.0)
	- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.4
	- Support for 11be 160MHz wireless standard
	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1)
	- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.4
	- Support for 11be 160MHz wireless standard
	(Actual data rate may vary depending on environment and equipment.)
	* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
	** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations
Expansion Slots	CPU:
	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Storage Interface	CPU:
	- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
	Chipset:
	- 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
	- 2 x SATA 6Gb/s connectors
	RAID 0 and RAID 1 support for SATA storage devices
USB	CPU:
	- 1 x USB4 USB Type-C port on the back panel
	Chipset:
	- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
	- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	- 2 x USB 2.0/1.1 ports available through the internal USB header
	Chipset+USB 3.2 Gen 1 Hub:
	- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	1 x system fan header
	2 x addressable RGB Gen2 LED strip headers
	2 x M.2 Socket 3 connectors
	2 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x speaker header
	1 x USB Type-C header, with USB 3.2 Gen 2 support
	1 x USB 3.2 Gen 1 header
	1 x USB 2.0/1.1 header
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x reset jumper
	1 x Clear CMOS jumper
Back Panel Connectors	1 x DisplayPort
	1 x HDMI port
	1 x Intel Thunderbolt 4* connector (USB4 USB Type-C port)
	3 x USB 3.2 Gen 2 Type-A ports (red)
	2 x USB 3.2 Gen 1 ports
	1 x Q-Flash Plus button
	1 x RJ-45 port
	2 x antenna connectors (2T2R)
	2 x audio jacks
	1 x optical S/PDIF Out connector
	* Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
	Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	Mini-ITX Form Factor , 17.0cm x 17.0cm
