Micro Instruments LED Aircraft Beacon - red high-intensity aviation beacon
- Brand: Micro Instruments
- Product Code: MI-AB-LED [#22]
- sku: MI-AB-LED
- Reward Points: 15
- Availability: In Stock ✓ Ready to ship!
- Qty available: 3
R3,051.02 inc. VAT
- Ex VAT: R2,653.06
- Price in reward points: 3052

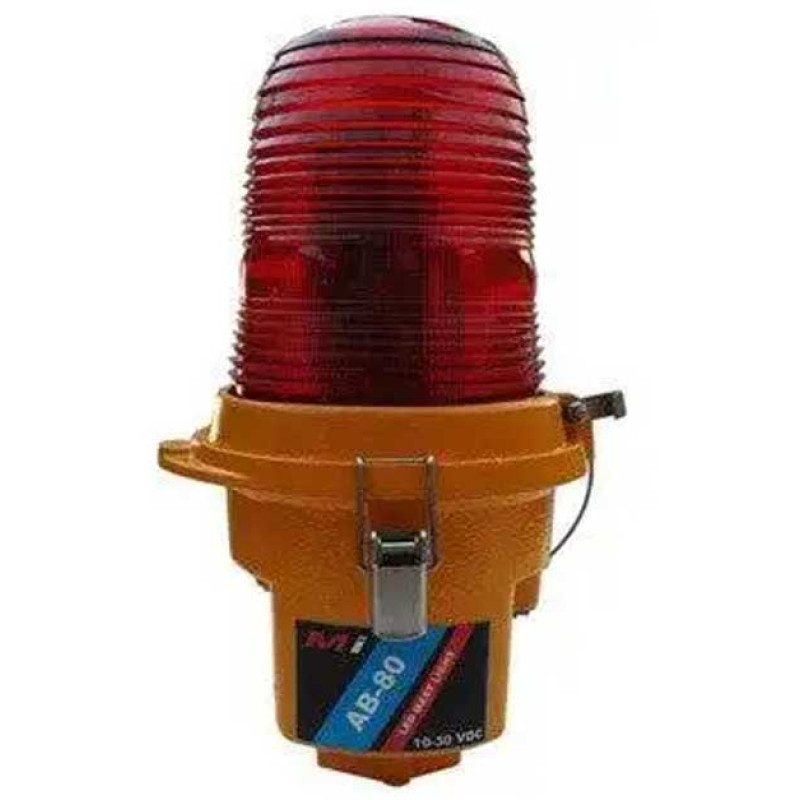

Micro Instruments LED Aircraft Beacon, RED, Tempered Glass, Aluminium Body, 11-36 VDC. A rugged, high-intensity aviation beacon designed for tower and mast applications over 21m in height. The beacon features: Bright Red LEDs (80‑LED cartridge) producing approximately 12,000mcd with a 15degree beam spread.
Specifications for this model: MI-AB-LED
Full specifications for the entire range
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
Features:
- 80 led lamp cartrideg
- High intesity 12000 mcd 15 deg angle red leds
- Supply 11-36 VDC@200 mA
- 100 000 hr/s operation
- Aluminium cast body with tempered glass reflecter
- Weatherproof
- Stainless steel cable from housing to reflector keeps unit secure
Micro Instruments LED Aircraft Beacon, RED, Tempered Glass, Aluminium Body, 11-36 VDC
A rugged, high-intensity aviation beacon designed for tower and mast applications over 21 m in height. The beacon features:
- Bright Red LEDs (80-LED cartridge) producing approximately 12,000 mcd with a 15degree beam spread
- Voltage range: 11-36V DC, drawing around 200 mA
- Built-in durability: die-cast aluminium body with tempered glass reflector; weatherproof, rated for 100,000 hours typical lifespan
- Dimensions:
- ~24 cm (L) × 16 cm (W) × 18 cm (H), weight ~2kg
- Mounting: requires a 32 mm threaded pipe mount (bracket not included)
Typically used as a mast-top safety light for communication towers, wind turbines, or other elevated structures requiring aviation clearance.
