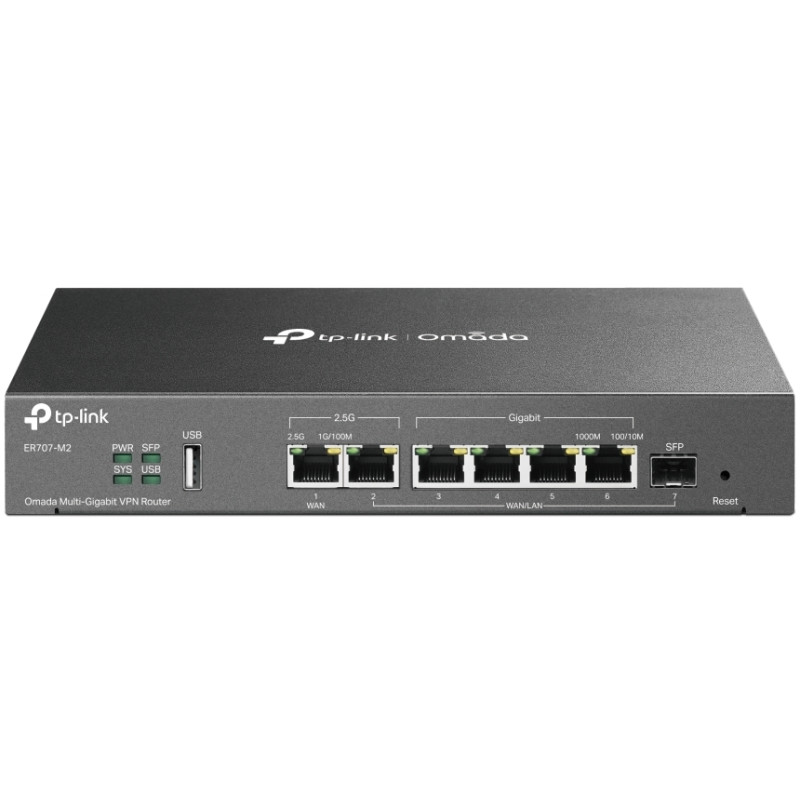

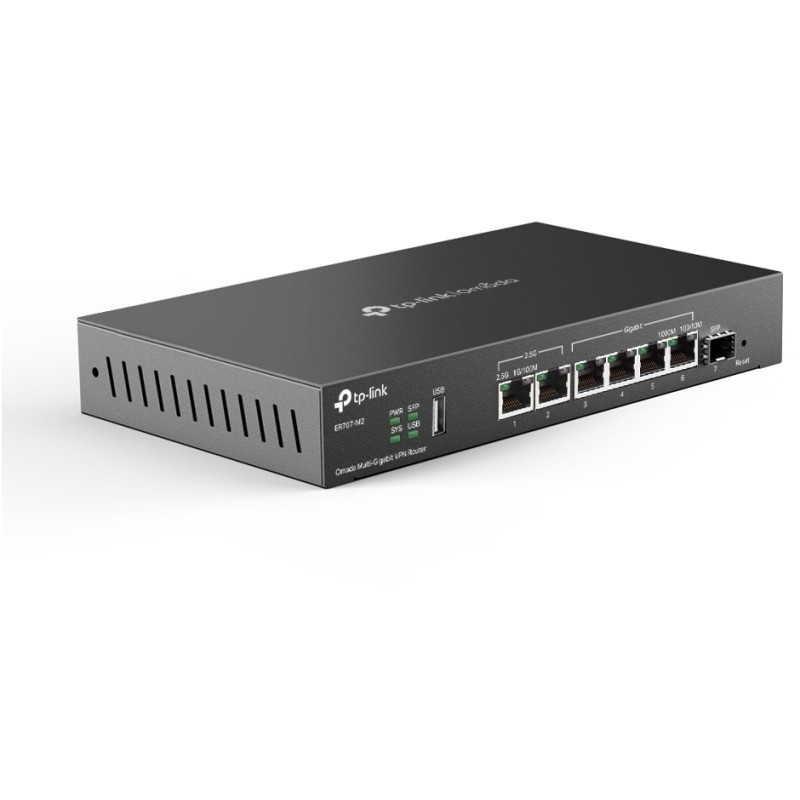

TP-Link ER707-M2 Omada Multi-Gigabit VPN Router
- Brand: TP-link
- Product Code: NET-TL-ER707-M2 [#68]
- sku: NET-TL-ER707-M2
- Reward Points: 11
- Availability: In Stock ✓ Ready to ship!
- Qty available: 4
R2,200.55 inc. VAT
- Ex VAT: R1,913.52
- Price in reward points: 2201
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
Overview:
ER707-M2
Omada Multi-Gigabit VPN Router
- Two 2.5G Ports : 1x 2.5G WAN and 1x 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.
- Up to 6 WAN Ports : 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
- Highly Secure VPN : Enterprise-standard SSL/IPSec/GER /PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
- Integrated into Omada SDN : Supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, Intelligent Monitoring, and more.
- Centralized Management : Cloud access and Omada app provide the utmost in management convenience.
- Extensive Security Features : Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.
Features:
High-Performance and Ultra-Secure 2.5G Business Router
Omada Multi-Gigabit VPN Router
- Centralized Management
- 2.5 Gbps Port
- Up to 6 WAN Ports
- Load Balance
- SSL/IPSec/GER /PPTP/L2TP VPN
- Multi-Net DHCP
- Powerful Firewall
- Omada App
Dual 2.5 Gbps Ports, Engineered for Dense Environments
Delivering high-speed transmissions through dual 2.5 Gbps ports, ER707-M2 is designed for multi-person environments such as retail stores, hotels, and offices. Enjoy a blazing-fast network experience while working from home.
6x WAN Ports & 1 USB WAN for Mobile Broadband
Empowered with up to 6x WAN SFP and RJ45 ports, ER707-M2 supports various internet access. Multi-WAN Load Balancing distributes data streams based on the bandwidth proportion of every WAN port to increase the utilization rate of multi-line broadband.
Connect a 4G/3G modem to the USB 2.0 port for a LTE WAN backup.
High-Security VPN
Pass-through traffic and a variety of VPN protocols, such as SSL, GRE, IPSec, PPTP, and L2TP, are available on ER707-M2, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features a built-in hardware engine to boost VPN performance.
Internet Access Management Strategy
Standardize users' online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Omada SDN-The Smarter Cloud Solution for Business Networking
As the router that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER707-M2 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Specifications:
| Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (http://www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
| Specifications | |
| Product Code | NET-TL-ER707-M2 |
| SECURITY | |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | WEB Group Filtering |
| URL Filtering | |
| Web Security | |
| ARP Inspection | Sending GARP Packets |
| ARP Scanning | |
| IP-MAC Binding | |
| Attack Defense | TCP/UDP/ICMP Flood Defense |
| Block TCP Scan (Stealth FIN/Xmas/Null) | |
| Block Ping from WAN | |
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q |
| TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP | |
| Interface | 1 x 2.5G RJ45 WAN Port |
| 1 x 2.5G RJ45 WAN/LAN Port | |
| 1 x Gigabit SFP WAN/LAN Port | |
| 4 x Gigabit RJ45 WAN/LAN Ports | |
| 1 x USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle) | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) |
| 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) | |
| 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) | |
| 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) | |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 12V/1.5A Adapter |
| PoE Budget | - |
| Flash | 128MB NAND |
| DRAM | 1 GB DDR4 |
| LED | PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
| Dimensions ( W x D x H ) | 8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop/Wall Mounting |
| Max Power Consumption | 14.2 W (with USB2.0 connected) |
| 7.1 W (without USB2.0 connected) | |
| PERFORMANCE | |
| IPS Throughput | TCP: 208 Mbps |
| UDP: 161 Mbps | |
| DPI Throughput | TCP: 1823 Mbps |
| UDP: 1272 Mbps | |
| Concurrent Session | 500000 |
| New Sessions /Second | 4200 |
| NAT (Static IP) | 2364.45 Mbps / 2343.28 Mbps |
| NAT(DHCP) | 2364.24 Mbps / 2326.21 Mbps |
| NAT(PPPoE) | 2350.93 Mbps / 2125.83 Mbps |
| NAT (L2TP) | 1249.04 Mbps / 831.12 Mbps |
| NAT (PPTP) | 1169.23 Mbps / 1175.52 Mbps |
| IPsec VPN Throughput | ESP-MD5-AES256: 537.12 Mbps |
| ESP-SHA1-AES256: 754.65 Mbps | |
| L2TP VPN Throughput | Unencrypted: 1442.65 Mbps |
| Encrypted: 346.43 Mbps | |
| SSL VPN Throughput | 142.99 Mbps |
| 66 Byte Packet forwarding rate | 1832.69 Mbps / 1741.84 Mbps |
| 1,518 Byte Packet forwarding rate | 2461.18 Mbps / 2457.32 Mbps |
| BASIC FUNCTIONS | |
| WAN Connection Type | IPv4_Static IP |
| IPv4_Dynamic IP | |
| IPv4_PPPOE | |
| IPv4_L2TP | |
| IPv4_PPTP | |
| IPv6_PPP | |
| IPv6_DHCPv6 | |
| IPv6_Static IP | |
| IPv6_6in4 | |
| IPv6_Pass-Through | |
| Mobile Broadband: 4G/3G modem for backup via USB port | |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP | DHCP Server/Client |
| DHCP Address Reservation | |
| Multi-IP Interfaces | |
| Multi-Net DHCP | |
| IPv6 | WAN Connection |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
| Advanced Routing | Static Routing |
| Policy Routing | |
| Bandwidth Control | IP/Port-based Bandwidth Control |
| Guarantee & Limited Bandwidth | |
| Load Balance | Intelligent Load Balance |
| Application Optimized Routing | |
| Link Backup (Timing, Failover) | |
| Online Detection | |
| NAT | One-to-One NAT |
| Multi-Net NAT | |
| Port Forwarding | |
| Port Triggering | |
| NAT-DMZ | |
| FTP/H.323/SIP/IPSec/PPTP ALG | |
| UPnP | |
| Security | Attack Defense: |
| TCP/UDP/ICMP Flood Defense | |
| Block TCP Scan (Stealth FIN/Xmas/Null) | |
| Block Ping from WAN | |
| Filtering | |
| Web Group Filtering | |
| URL Filtering | |
| Web Security | |
| ARP Inspection: | |
| Sending GARP Packets | |
| ARP Scanning | |
| IP-MAC Binding | |
| Access Control | |
| Source/Destination IP Based Access Control | |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN | 100 IPSec VPN Tunnels |
| LAN-to-LAN, Client-to-LAN | |
| Main, Aggressive Negotiation Mode | |
| DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm | |
| IKEv1/v2 | |
| MD5, SHA1 Authentication Algorithm | |
| NAT Traversal (NAT-T) | |
| Dead Peer Detection (DPD) | |
| Perfect Forward Secrecy (PFS) | |
| PPTP VPN | PPTP VPN Server |
| PPTP VPN Clients (12) | |
| 60 Tunnels (Shared with L2TP) | |
| PPTP with MPPE Encryption | |
| L2TP VPN | L2TP VPN Server |
| L2TP VPN Clients (12) | |
| 60 Tunnels (Shared with PPTP) | |
| L2TP over IPSec | |
| OpenVPN | OpenVPN Server |
| OpenVPN Clients (6) | |
| 66 OpenVPN Tunnels | |
| AUTHENTICATION | |
| Web Authentication | No Authentication |
| Simple Password | |
| Hotspot (Local User/Voucher* /SMS*/Radius*) | |
| External Radius Sever | |
| External Portal Sever | |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based Controller |
| Omada Hardware Controller (OC300) | |
| Omada Hardware Controller (OC200) | |
| Omada Software Controller | |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | Web Management Interface |
| Remote Management | |
| Export & Import Configuration | |
| SNMP v1/v2c/v3 | |
| Diagnostics (Ping & Traceroute) | |
| NTP Synchronize | |
| Syslog Support | |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | Automatic Device Discovery |
| Intelligent Network Monitoring | |
| Abnormal Event Warnings | |
| Unified Configuration | |
| Reboot Schedule | |
| Captive Portal Configuration | |
| ZTP (Zero-Touch Provisioning) | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | ER707-M2 |
| Power Adapter | |
| Quick Installation Guide | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7 / 8 / 8.1 / 10, MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0-40 degreesC (32-104 degreesF) |
| Storage Temperature: -40-70 degreesC (-40-158 degreesF) | |
| Operating Humidity: 10-90% RH non-condensing | |
| Storage Humidity: 5-90% non-condensing | |
