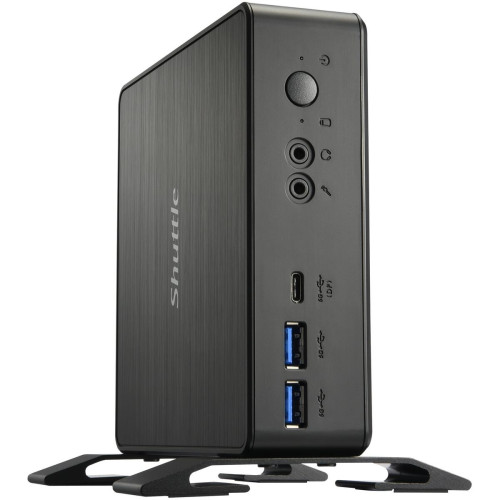

Shuttle NC40U NUC PC, i5-1235U 4.4GHz, No RAM, No SSD, Intel Graphics, No OS

Overview:

Shuttle NC40U Nano PC: Compact, High-Performance Computing with Exceptional Connectivity
The Shuttle NC40U is a powerful yet compact mini-PC designed to deliver high performance and extensive connectivity in a small form factor. Featuring Intel's 12th Gen Core i5-1235U processor, this device is engineered for demanding tasks like digital signage, point-of-sale (POS), office productivity, multimedia applications, and more. Despite its 850 ml volume, the NC40U supports up to three 4K displays, offers seven USB 3.2 ports, and includes expansion options like M.2 NVMe slots and a 2.5" storage bay. This versatile system is ideal for users seeking a space-saving solution without compromising on power or performance.

Features:

Key Benefits and Capabilities
The Shuttle NC40U is a high-performance, compact mini-PC built to handle both office and multimedia tasks with ease. Equipped with the Intel Core i5-1235U processor, the device supports demanding workloads while maintaining efficient energy use. Its flexibility in connectivity allows users to set up multi-monitor configurations, connect numerous USB devices, and expand storage with M.2 and 2.5" drives. The inclusion of multiple high-definition display outputs, including HDMI, DisplayPort, and USB Type-C, ensures versatility and future-proofing for users needing UHD display options. With its easy VESA-mountable design and support for up to 64GB of RAM, the NC40U offers both performance and expandability in a compact package.

Powerful Intel 12th Gen Processor
The NC40U is powered by an Intel Core i5-1235U processor, featuring 10 cores (2 performance cores and 8 efficient cores) with a turbo boost up to 4.4 GHz. This ensures a responsive computing experience for both light and heavy tasks. The processor's energy-efficient design allows for continuous operation without compromising on performance.

Multi-Display Support with UHD Resolution
This mini-PC offers exceptional graphics capabilities with the ability to support three 4K displays simultaneously. Equipped with one HDMI 2.0 port, one DisplayPort 1.4a, and one USB Type-C output, the NC40U provides a range of connectivity options for multi-monitor setups, making it ideal for digital signage, video walls, or multitasking environments.

Expandable Storage and Memory Options
The Shuttle NC40U supports up to 64 GB of DDR4 RAM, offering ample memory for even the most demanding applications. With dual M.2-2280 slots, users can install two NVMe SSDs for high-speed storage, while the 2.5" HDD/SSD bay accommodates additional storage (up to 12.5mm thickness). These expansion options make the NC40U a highly flexible solution for various business and personal needs.

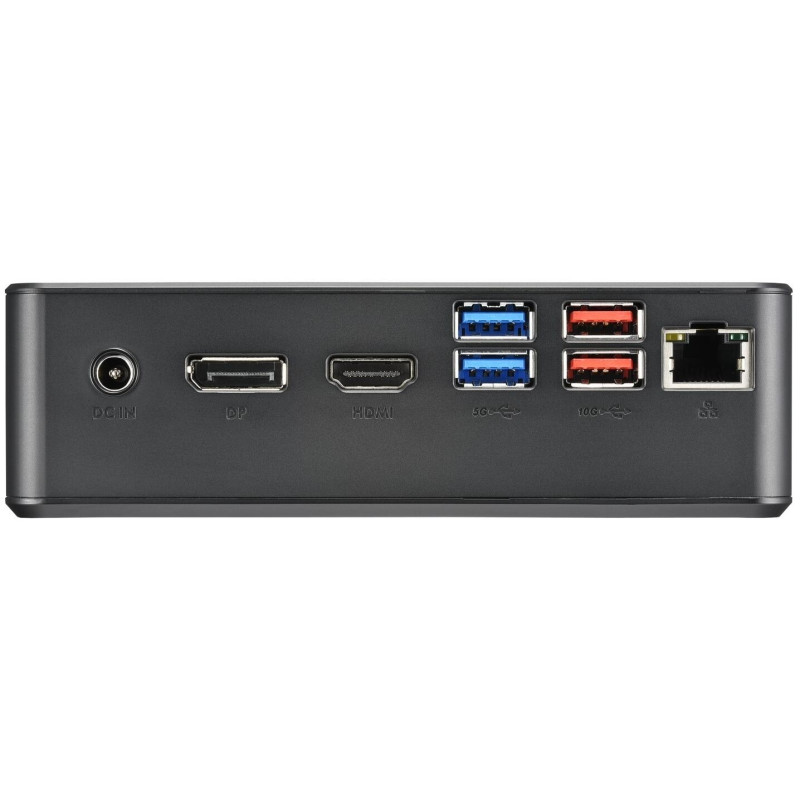

Robust Connectivity with USB and Ethernet
The NC40U provides a variety of connectivity options, including six USB 3.2 ports for fast data transfer and one USB 3.2 Type-C port for modern devices. A Gigabit Ethernet port ensures reliable wired networking, making it suitable for environments where high-speed internet or local network access is critical.

Efficient and Versatile Design
Despite its compact size, the Shuttle NC40U doesn't skimp on features. Its versatile design allows for easy wall or VESA mounting, saving space while keeping the system accessible. The compact form factor, combined with the powerful performance, makes this mini-PC an ideal choice for a wide range of applications, including retail, office, and entertainment use.

Flexible Expansion Options with M.2 Slots
The NC40U includes three M.2 slots, enabling users to add additional storage or Wi-Fi modules. With two M.2-2280 slots for NVMe SSDs and one M.2-2230 slot for a Wi-Fi module, this mini-PC offers flexibility for future upgrades, ensuring long-term viability and performance.

Ideal for Digital Signage, POS, and Office Use
The Shuttle NC40U excels in environments where space and performance are paramount. Whether for digital signage, point-of-sale (POS) systems, or multimedia stations, this mini-PC's compact form factor and versatile connectivity options make it a perfect choice for various commercial and industrial applications.

Summary of Key Capabilities:

• Intel Core i5-1235U Processor : 10-core, up to 4.4 GHz for powerful performance
• Dual 4K Display Support : HDMI, DisplayPort, and USB Type-C for multi-monitor setups
• Expandable Storage : Two M.2 SSD slots and one 2.5" drive bay
• Up to 64 GB DDR4 RAM : High capacity for demanding applications
• Comprehensive Connectivity : Seven USB ports, Gigabit Ethernet, and display outputs
• VESA Mountable : Space-saving design for various installation options
