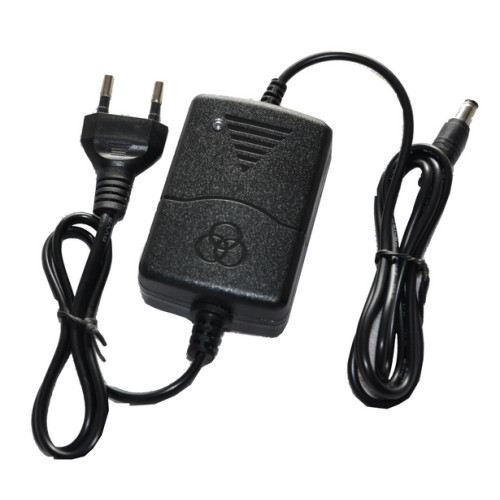

Syntech PD Power 12V 1A Desktop Adapter
- Brand: Syntech
- Product Code: PDA-12-12 [#56]
- sku: PDA-12-12
- Availability: In Stock ✓ Ready to ship!
- Qty available: 130
R50.14 inc. VAT
- Ex VAT: R43.60
- Price in reward points: 51
Syntech PD Power 12V 1A Desktop Adapter, Universal AC input / Full range, High efficiency up to 80%
Specifications for this model: PDA-12-12
Full specifications for the entire range
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
Features:
- Universal AC input/Full range
- Protections: Short circuit/Overload
- 100% full load burn-in test
- Cooling by free air convection
- High efficiency up to 80%
- Low cost, high reliability
Specifications:
| Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC , however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
| Specifications | |
| Product Code | PDA-12-12 |
| OUTPUT | |
| DC VOLTAGE | 12V |
| RATED CURRENT | 1A |
| CURRENT RANGE | 0~1A |
| RATED POWER | 12W |
| RIPPLE & NOISE (max.) | 300mVP-P |
| VOLTAGE TOLERANCE | ±0.5% |
| LINE REGULATION | ±0.5% |
| LOAD REGULATION | ±0.5% |
| SETUP, RISE TIME | 2ms, 40ms/115VAC at full load |
| HOLD UP TIME(Typ.) | 5ms/115VAC at full load |
| INPUT | |
| VOLTAGE RANGE | 100 ~ 245VAC |
| FREQUENCY RANGE | 50 ~ 60Hz |
| EFFICIENCY (Typ.) | 0.8 |
| AC CURRENT (Typ.) | 3A/240VAC |
| INRUSH CURRENT (Typ.) | COLD START 30A/240VAC |
| LEAKAGE CURRENT | <3mA / 240VAC |
| PROTECTION | |
| OVERLOAD | 105 ~ 135% rated output power |
| Protection type | Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 13.8 ~16.2V |
| Protection type | Shut down o/p voltage, re-power on to recover |
| ENVIRONMENT | |
| WORKING TEMP. | 0 ~ +40 (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP. / HUMIDITY | -25 ~ +85 °C, 10~ +95% RH |
| SAFETY | |
| SAFETY STANDARDS | CE approved |
| WITHSTAND VOLTAGE | DIELECTRIC STRENGTH 1500Vac/5mA/60s |
| DIMENSION | 90 x 50 x 30mm (L x W x H) |
| DC jack | 5.5 x 2.1/2.5mm |
| AC cable length | 120cm |
| DC cable length | 100cm |
