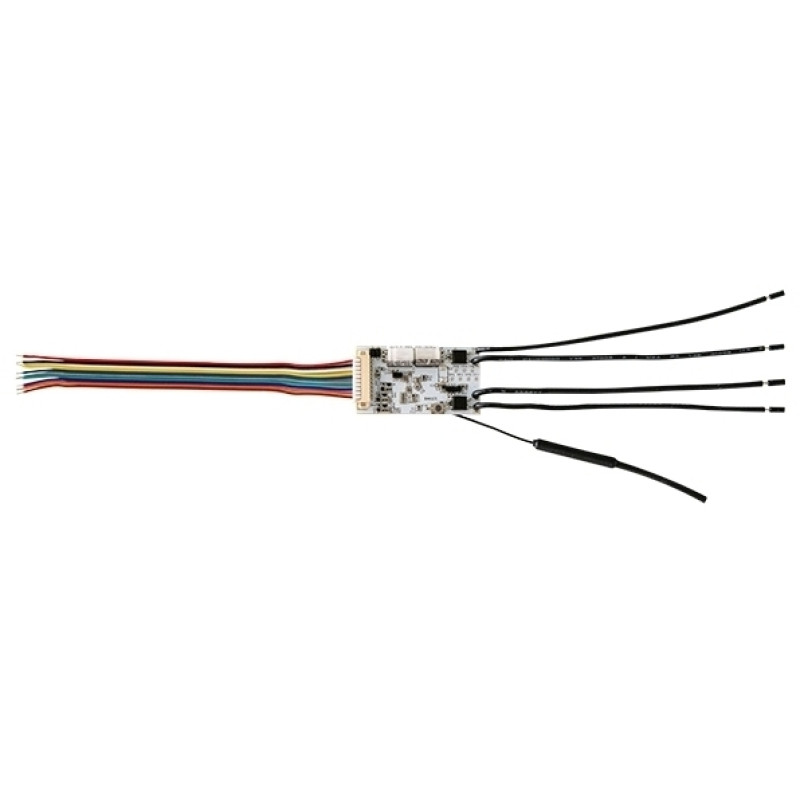

Shelly Plus Universal Smart Wi-Fi-operated

Shelly Plus Universal Smart wi-fi-operated, 30 V Max switching Voltage, 250mA Max switching current, 1.5V (Active low level) Pulse counter Input triggering Voltage, 1 kHz Pulse counter Max Frequency, 0-15 VDC / 0-30 VDC (Two-range) voltmeter, Wi-Fi 2.4GHz, No Hub required!

Overview:

What is Shelly Plus UNI?
Smart Wi-Fi-operated module

Designed for low-voltage systems, this small device offers advanced automation and insightful monitoring. Ideal for a variety of applications. Shelly Plus Uni unlocks a range of smart possibilities for your home appliances.

• No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
• Suitable for small appliances with low-voltage AC and DC applications (8-24 VAC, 9-28 VDC, and 5 VDC)
• Has two digital and 1 analog inputs
• Supports 1-Wire sensors (single DHT22 & up to 5 DS18B20)
• Compatible with most Arduino sensors! Use its digital or analog inputs to measure your desired parameters and create complex automation scenes based on the sensor data
• Receive precise data readings from your energy/gas/water meter (or any other meter that supports pulse count readings via external sensors)
• Wi-Fi Range Extender & BLE Gateway
• Extremely fast processor for immediate reaction - ESP32
• Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

Features:

Wi-Fi Operated & Bluetooth connectivity
Connect to your Wi-Fi network. No HUB required! Quick inclusion via Bluetooth or use it as a Bluetooth gateway.

Pulse counting
Receive precise data readings from your energy/gas/water meter.

Sensor interface
Works with various analog and digital sensors.

Dry contacts
Two potential-free outputs that can switch up to 28VDC and 24VAC.

Precise Voltmeter
Precise voltage measurement in 2 ranges (0-15 VDC, 0-30VDC).

Scripting
Shelly Plus Uni fully supports scripting, allowing you local control and custom functionalities.

From Manual to Smart
Shelly Plus Uni has the unique capability to replace traditional buttons, bringing old appliances into the realm of remote control without the need for replacements. Now, you can easily make your intercom or alarm system smart. Receive instant notifications when someone's at the door and remotely arm or disarm your security system with ease.

Advanced Sensor Interface
Shelly Plus Uni is not just a device; it's a tool to understand your environment better. Use it to measure temperature and humidity with its 1-Wire input, or connect it to a variety of analog and digital sensors. Its capabilities are vast, depending on the sensors you choose.

Healthy garden
Make sure you water your plants only when needed by connecting a soil moisture sensor.

Water heater and pipes
Monitor water level, flow, pressure, and temperature to prevent issues and maintain ideal conditions.

Pool automation
Maintain pool health with sensors to track water flow, level, pH, chlorine, and temperature, ensuring a safe and enjoyable swim.

Motion-controlled lights
When connected to a PIR sensor, Shelly Plus Uni can trigger a relay to turn on the lights as soon as you step into the room.

Stay Connected to your Gate and Garage
Now, whether you're at home or away, you can effortlessly operate your gate or garage door with your phone. But it doesn't stop there; the reed-switch provides real-time updates, ensuring you always know if they are securely closed or open. This setup simplifies daily routines, whether it's closing the garage from your office or welcoming guests without leaving your home.

Transform Your Meter Data into Savings
Shelly Plus Uni's new pulse counting feature brings a smart twist to your home utilities. By connecting it to your energy or water meter, you gain a clear view of your electricity and water usage. Create automation and reduce monthly costs based on the data readings from your energy, water or gas meter.

Specifications:

Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC , however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	SHELLY PLUS UNI
Dimensions (LxWxH)	37x42x16 mm / 1.46x1.65x0.63 in (without the cables)
Weight	8.5 g / 0.3 oz
Ambient temperature	-20 °C to 40 °C / -4 °F to 104 °F
Humidity	30 % to 70 % RH
Power supply	8-24 VAC / 9-28 VDC / 5 VDC (stabilized, via +5 VDC and GND)
Power consumption	< 1 W
Digital inputs resistance	50 kΩ
Digital inputs triggering voltage	1.5 V (active low level)
Max switching voltage	30 V
Max switching current	250 mA
Voltmeter	0-15 VDC / 0-30 VDC (Two-range)
Pulse counter input triggering voltage	1.5 V (active low level)
Pulse counter max frequency	1 kHz
External sensors supported	Single DHT22 or up to five DS18B20
RF band	2400 - 2495 MHz
Max. RF power	< 20 dBm
Wi-Fi protocol	802.11 b/g/n
up to 50 m / 160 ft	outdoors
up to 30 m / 100 ft	indoors
Bluetooth protocol	4.2
up to 30 m / 100 ft	outdoors
up to 10 m / 33 ft	indoors
CPU	ESP32
Flash	4 MB
Schedules	20
Webhooks (URL actions)	20 with 5 URLs per hook
Scripting	Yes
MQTT	Yes
