Switched 12-way High Surge Multiplug 0.5m - White
- Brand: Switched
- Product Code: SWD-9512-05-WT [#65]
- sku: SWD-9512-05-WT
- Reward Points: 2
- Availability: In Stock ✓ Ready to ship!
- Qty available: 1297
R430.54 inc. VAT
- Ex VAT: R374.38
- Price in reward points: 431

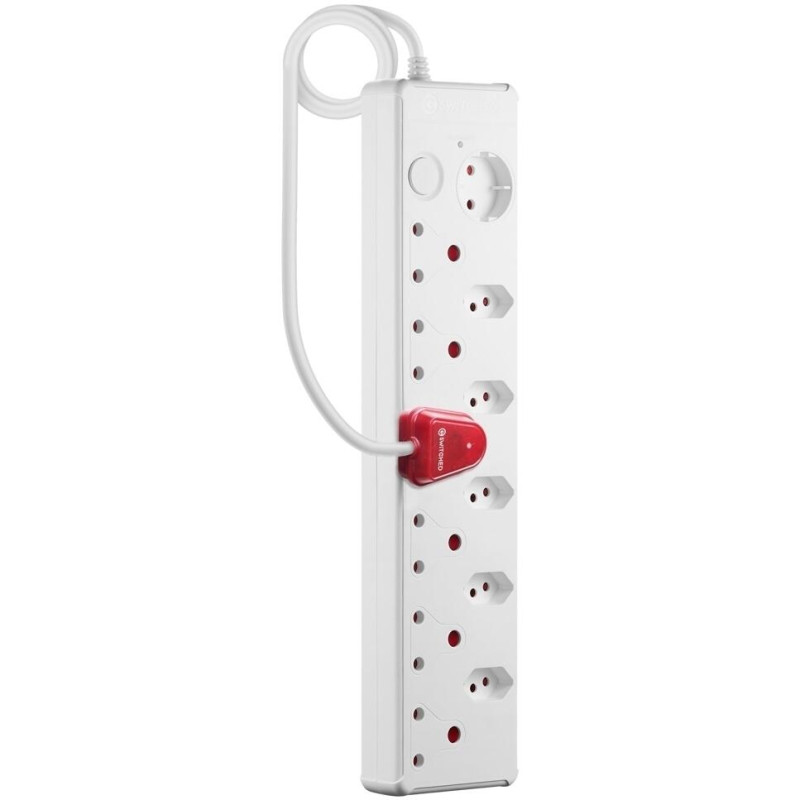

Switched 12-way High Surge Multiplug 0.5m - White. Input: ZA 3-pin plug (SANS 164-1). Outputs:6x ZA 3-pin sockets (SANS 164-1 Type "M"), 5x New ZA Sockets (SANS 164-2 Type "N"), 1x Schuko (SANS 164-6, 10A), commonly found on power tools. Cable is 0.5m in length. All sockets on the top face. The surge protection is high, and the surge protection circuitry is built into the input plug, protecting all the devices. No power switch. 1x overload reset switch. Safe shutter protection. Maximum current: 16A.
Specifications for this model: SWD-9512-05-WT
Full specifications for the entire range
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
Overview summary:
The Switched 12-Way High Surge Multiplug offers premium protection and versatile power expansion with six current ZA sockets, five new ZA sockets, and a Schuko socket for power tools or electrical equipment. Its 0.5m cable and top-face layout make it ideal for desks, workstations, and home setups. With built-in high-level surge protection and overload reset, it ensures safe, reliable performance for all connected devices.
Overview:

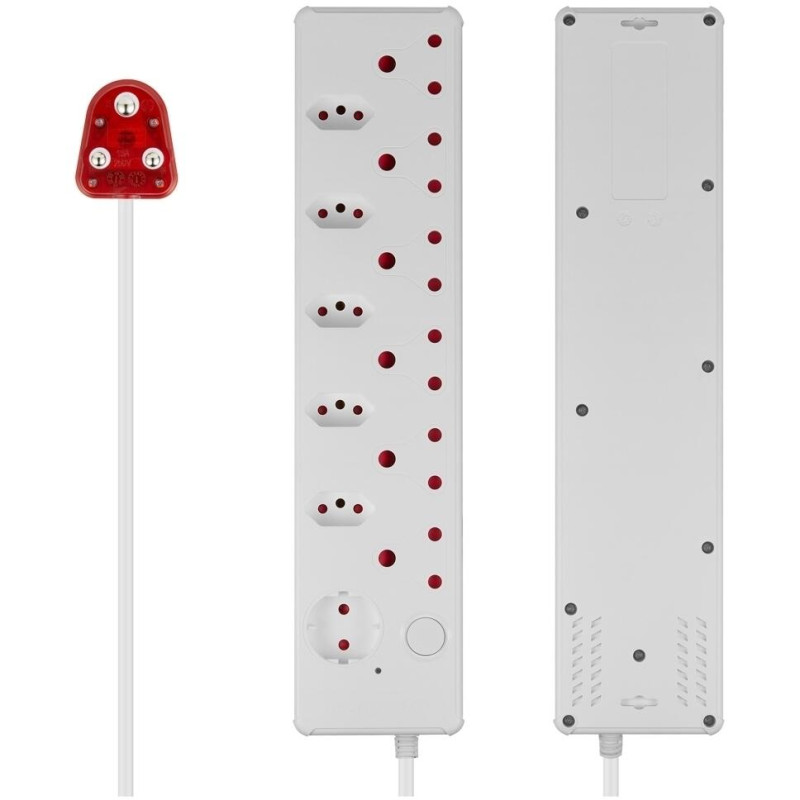

- Input: 1x ZA 3-pin plug (SANS 164-1)
- Output: 6x ZA sockets (SANS 164-1), 5x New ZA sockets (SANS 164-2), 1x Schuko socket (SANS 164-6)

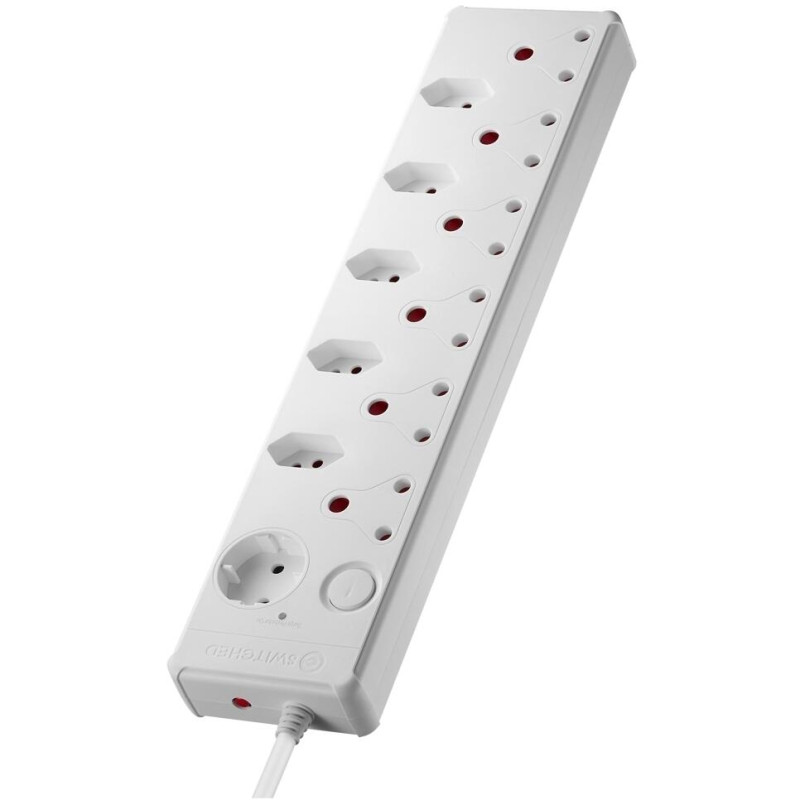

- Layout: All sockets on top face
- Protection: High surge protection built into input plug
- Switch: No main power switch
- Overload: 1x overload reset switch
- Safety: Safe shutter protection
Specifications:
- Type of electrical good: High-surge 12-way multiplug
- Description: Expands a single ZA plug into 12 sockets
- Connection type: 0.5 meter cable with 3-pin plug
- Total length with cord: 0.5m
- Switch: No power switch
- Surge protection: Yes - High level
- Overcurrent protection trip switch: Yes - 1x reset switch
- Surge protection type: Built into input plug
- Power on indication: None
- Color: White
- Earthed: Yes (input and outputs)
- Integrated charging ports: No
- High Surge Protection: 1,140 Joules to shield appliances from surges and spikes
- Total Surge Current: 18,000 A
- Overload Protection: Built-in protection with reset button
- Safety Shutters: Prevents accidental contact with live components
- Compact Design: 0.5-meter cord for space-efficient setup
- High Load Capacity: Supports up to 3,680 W
- Voltage and Current Rating: 250 V (16 A)
- Surge Protection Max: 6,000 A
- Cord Length: 0.5 meters
Input:
- Common name: South African 3-pin plug
- Description: Standard 3-pin triangular South African plug for Type-M wall sockets
- Connects to socket type (IEC): IEC Type M
- Plug type (SANS): SANS 164-1
- Input Voltage: 250V AC
- Maximum Current: 16A
- Earthed: Yes
Output 1-6 (x6):
- Common name: South African 3-pin socket
- Description: Current South African socket for larger appliances
- Socket type (IEC): IEC Type M
- Socket type (SANS): SANS 164-1
- Output Voltage: 250V AC
- Maximum Current: 16A
- Earthed: Yes
- Quantity: 6
Output 7-11 (x5):
- Common name: New South African 3-pin socket
- Description: Compact 3-pin socket, compatible with Europlug
- Socket type (IEC): IEC Type N
- Socket type (SANS): SANS 164-2
- Output Voltage: 250V AC
- Maximum Current: 16A
- Earthed: Yes
- Quantity: 5
Output 12 (x1):
- Common name: Schuko socket
- Description: Round 2-pin socket used for use with power tools and electrical equipment
- Socket type (IEC): IEC Type E / F
- Socket type (SANS): SANS 164-6
- Output Voltage: 250V AC
- Maximum Current: 10A
- Earthed: No
- Quantity: 1
