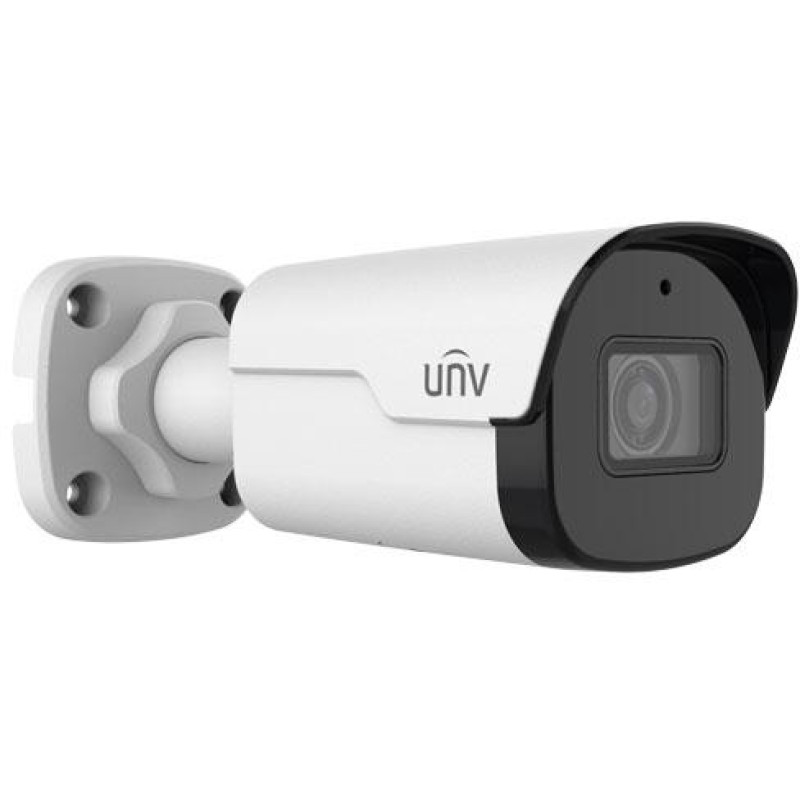

Uniview UNV Ultra H.265 4MP Deep Learning WDR & LightHunter Mini Bullet Camera with 4.0mm lens
- Brand: Uniview
- Product Code: UN-IPC2124S-ADF40-I0 [#22]
- sku: UN-IPC2124S-ADF40-I0
- Reward Points: 11
- Availability: In Stock ✓ Ready to ship!
- Qty available: 59
R2,214.93 inc. VAT
- Ex VAT: R1,926.03
- Price in reward points: 2215
Uniview UNV Ultra H.265 4MP Deep Learning WDR & LightHunter mini Bullet Camera with 4.0mm Lens, 1/3" 4.0 Megapixel Progressive Scan CMOS sensor, 4.0mm @ F1.6 Lens, Ultra 265 / H.265 / H.264 / MJPEG Video Compression, 4MP (2688x1520) @ 25fps, 120dB True WDR, Built-in Mic, Smart IR up to 40m, IP67 protection, 1x RJ45 10M/100M Base-TX Ethernet. Lens: 4.0mm@F1.6; Angle of View (H): 83.7?°; Angle of View (V): 4.9?°; Angle of View (O): 89.2?°
Specifications for this model: UN-IPC2124S-ADF40-I0
Full specifications for the entire range
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
Overview:
IPC2124SB-ADF28(40)KM-I0
4MP HD LightHunter IR Fixed Bullet Network Camera
- High quality image with 4MP, 1/3"CMOS sensor
- 4MP (2688*1520)@25fps; 4MP (2560*1440)@25fps; 3MP (2304*1296) @25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- LightHunter technology ensures ultra-high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 40m (131ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
Specifications:
| Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (http://www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
| Specifications | |
| Product Code | UN-IPC2124S-ADF40-I0 |
| Item | IPC2124SB-ADF28KM-I0 |
| Camera | |
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS |
| Lens | 4.0mm@F1.6 |
| Angle of View (H) | 83.7° |
| Angle of View (V) | 44.9° |
| Angle of View (O) | 89.2° |
| Adjustment angle | Pan: 0° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) |
| 0Lux with IR on | |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >56dB |
| IR Range | Up to 40m (131 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps, 4MP (2560*1440), Max 25fps, 3MP (2304*1296), Max 25fps, 1080P (1920*1080), Max 30fps |
| Sub Stream: 720P (1280*720), Max 30fps, D1 (720*576), Max 30fps, 640*360, Max 30fps, 2CIF(704*288), Max 30fps, CIF(352*288), Max 30fps | |
| Third Stream: D1 (720*576), Max 30fps, 640*360, Max 30fps, 2CIF(704*288), Max 30fps, CIF(352*288), Max 30fps | |
| Video Bit Rate | 128 Kbps~16 Mbps |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation |
| EZView | |
| EZLive | |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |
| Interface | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| Certifications | |
| Certifications | CE: EN 60950-1 |
| UL: UL60950-1 | |
| FCC: FCC Part 15 | |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 4.0W | |
| Dimensions (L x W x H) | 155.9 x 63.1 x 62.7mm (6.1" x 2.5" x 2.5") |
| Net Weight | 0.42kg (0.93lb) |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 2KV |
| Ingress Protection | IP67 |
| Reset Button | Supported |
