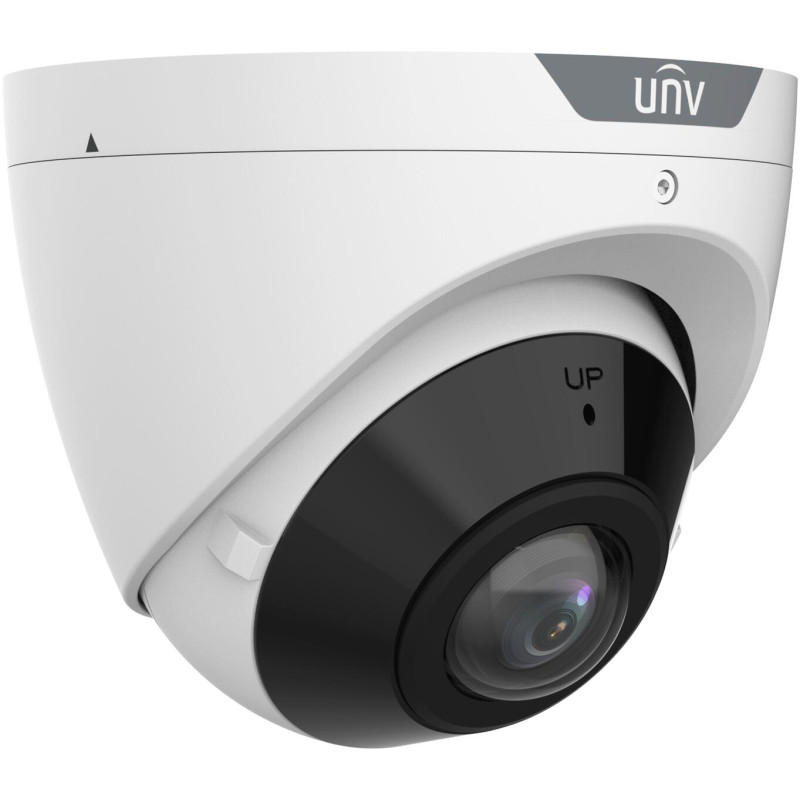

Uniview 8MP OmniView fixed IR Turret Network camera with 1.68mm fixed Lens
- Brand: Uniview
- Product Code: UN-IPC3608SB-ADF16KM-I0 [#22]
- sku: UN-IPC3608SB-ADF16KM-I0
- Reward Points: 16
- Availability: In Stock ✓ Ready to ship!
- Qty available: 14
R3,224.00 inc. VAT
- Ex VAT: R2,803.48
- Price in reward points: 3225
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
Overview Summary:
The Uniview 8MP OmniView Fixed IR Turret Network Camera delivers ultra-high-definition 180degrees panoramic coverage, making it ideal for monitoring large indoor and outdoor areas with fewer cameras. Its built-in microphone, Smart IR night vision, intelligent intrusion detection, IP67 weatherproof rating, IK10 vandal resistance, and PoE support provide dependable performance for professional surveillance installations.Whether you are upgrading an existing CCTV system or installing a new security solution, this camera offers excellent image quality and efficient H.265 video compression for reduced storage requirements. Buy now and secure your home, business, warehouse, school, or retail premises with a reliable panoramic network camera.
Performance tier: Professional
Uses: Business security, warehouse monitoring, retail surveillance, office security, school monitoring, parking area surveillance, building entrances, perimeter monitoring, indoor and outdoor CCTV installations
Overview:
180 Degree 8MP OmniView Turret Network Camera
Capture an ultra-wide 180 degree panoramic view with the Uniview 8MP OmniView Fixed IR Turret Network Camera. Equipped with a 1/2.7 inch CMOS sensor and a 1.68mm fixed lens, it delivers sharp 8MP video at up to 30fps while minimizing blind spots. The built-in dewarping function provides multiple viewing modes for a more natural image, making it ideal for entrances, corridors, retail spaces, warehouses, offices, schools, and other locations that require maximum coverage from a single camera.
Description:
The Uniview UN-IPC3608SB-ADF16KM-I0 is designed to provide wide-area surveillance with excellent image clarity and intelligent detection capabilities. Combining a panoramic 180 degree field of view, built-in microphone, Smart IR night vision, advanced video compression, and AI-powered intrusion prevention, this network camera helps improve security while reducing storage requirements and false alarms. Its rugged construction makes it suitable for both indoor and outdoor installations.
Features:
Why Choose This 8MP Panoramic Security Camera
Unlike traditional fixed cameras that require multiple units to cover a wide space, this OmniView camera delivers an expansive 180 degree horizontal viewing angle from a single installation point. Intelligent target classification helps distinguish people, vehicles, and non-motor vehicles from environmental movement, improving event accuracy while reducing unnecessary notifications.
The integrated dewarping technology allows users to adjust the panoramic image into more practical viewing layouts, making monitoring easier without sacrificing coverage.
Image Quality and Performance
Powered by an 8MP CMOS image sensor, the camera produces detailed surveillance footage with smooth recording at up to 30 frames per second. True 120dB Wide Dynamic Range helps maintain balanced exposure in scenes with both bright and dark areas, while 2D and 3D Digital Noise Reduction improve image quality in challenging lighting conditions.
Supported recording resolutions include:
- 3840 x 2160 at up to 30fps
- 3072 x 1728 at up to 30fps
- 2560 x 1440 at up to 30fps
- 1920 x 1080 at up to 30fps
Smart Detection and AI Analytics
Advanced analytics help improve perimeter security while minimizing false alarms.
Detection functions include:
- Cross line detection
- Intrusion detection
- Enter area detection
- Leave area detection
- Human, vehicle, and non-motor vehicle classification
- Basic motion detection
Video Compression and Storage
Efficient compression technologies reduce bandwidth usage while maintaining excellent image quality.
Supported formats:
- Ultra 265
- H.265
- H.264
- MJPEG
Additional recording capabilities include:
- Triple video streams
- Region of Interest (ROI)
- Up to 8 OSD overlays
- Up to 4 privacy masking areas
- MicroSD card support up to 512GB
Audio and Network Connectivity
The built-in microphone allows audio recording alongside video, providing additional context during security events.
Connectivity includes:
- 1 x RJ45 10/100 Mbps Ethernet port
- Network video streaming
- Built-in microphone
Night Vision and Lighting Performance
Smart IR technology automatically adjusts infrared illumination to prevent overexposure of nearby subjects while maintaining visibility in darkness.
Key benefits include:
- Smart IR technology
- Up to 20 metre infrared viewing distance
- 120dB True WDR
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- 2D and 3D Digital Noise Reduction
Built for Indoor and Outdoor Security
Designed for demanding environments, the camera offers reliable protection against dust, water, and physical impact.
Protection ratings:
- IP67 weather-resistant housing
- IK10 vandal-resistant construction
Technical Highlights
- Part Number / SKU: UN-IPC3608SB-ADF16KM-I0
- 8MP OmniView fixed IR turret network camera
- 1/2.7 inch CMOS image sensor
- 1.68mm fixed lens
- 180 degree panoramic viewing angle
- Adjustable dewarping levels from 1 to 9
- Maximum resolution of 3840 x 2160 at 30fps
- Built-in microphone
- Smart IR with 20 metre range
- Ultra 265, H.265, H.264 and MJPEG compression
- Intelligent intrusion prevention
- Triple stream support
- ROI support
- Up to 8 OSD overlays
- Up to 4 privacy mask areas
- MicroSD storage up to 512GB
- RJ45 10/100 Base-TX Ethernet connection
The Uniview UN-IPC3608SB-ADF16KM-I0 is an excellent solution for businesses and organizations seeking high-resolution panoramic surveillance with intelligent analytics, wide-area coverage, flexible viewing options, and reliable performance in both indoor and outdoor environments.
Specifications:
| Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC , however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
| Specifications | |
| Product Code | UN-IPC3608SB-ADF16KM-I0 |
| Item | IPC3608SB-ADF16KM-I0 |
| Camera | |
| Max Resolution | 8 MP |
| Sensor | 1/2.7" CMOS |
| Min. Illumination | Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0degrees to 360degrees, Tilt: 0degrees to 75degrees, Rotate: 0degrees to 360degrees |
| WDR | 120 dB |
| S/N | >52 dB |
| Lens | |
| Focal Length | 1.68 mm |
| Iris | F2.0 |
| Field of View (H) | 180degrees |
| Field of View (V) | 100degrees |
| Field of View (D) | 180degrees |
| Lens Type | Fixed |
| Iris Type | Fixed |
| DORI | |
| DORI Distance (Lens) | 1.68 mm |
| DORI Distance (Detect) | 37.8 m (124.0 ft) |
| DORI Distance (Observe) | 15.1 m (49.6 ft) |
| DORI Distance (Recognize) | 7.6 m (24.9 ft) |
| DORI Distance (Identify) | 3.8 m (12.5 ft) |
| Illuminator | |
| Illumination Distance (IR) | 20 m (65.6 ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Supplemental Light | IR |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
| Frame Rate-Main Stream | 8 MP (3840 x 2160), max. 30 fps , 5 MP (3072 x 1728), max. 30 fps , 4 MP (2560 x 1440), max. 30 fps , 1080P (1920 x 1080), max. 30 fps |
| Frame Rate-Sub Stream | 720P (1280 x 720), max. 30 fps , D1 (720 x 576), max. 30 fps , 640 x 360, max. 30 fps , 2CIF (704 x 288), max. 30 fps , CIF (352 x 288), max. 30 fps |
| Frame Rate-Third Stream | D1 (720 x 576), max. 30 fps , 640 x 360, max. 30 fps , 2CIF (704 x 288), max. 30 fps , CIF (352 x 288), max. 30 fps |
| Image | |
| Auto Scene Match (ASM) | Support (only WDR) |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Smart IR | Support |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180degrees |
| Dewarping | Support |
| HLC | Support |
| BLC | Support |
| Image Stabilization | N/A |
| Low Illumination Characteristics | Low-light |
| Defog | Digital defog |
| Intelligent | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Attribute Collection | SIP with color retrieval |
| Events | |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711U, G.711A, AAC-LC |
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, APP |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 x RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) |
| FCC (FCC 47 CFR part15 B) | |
| Safety | CE LVD (EN 62368-1) |
| UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |
| Environment | CE-RoHS (2011/65/EU , (EU)2015/863) , WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| IK10 (IEC 62262) | |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 5.5 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø111 mm x 93 mm (Ø4.4" x 3.7") (Ø x H) |
| Weight | 0.48 kg (1.06 lb) |
| Working Environment | -30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| Material | Metal |
| Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
