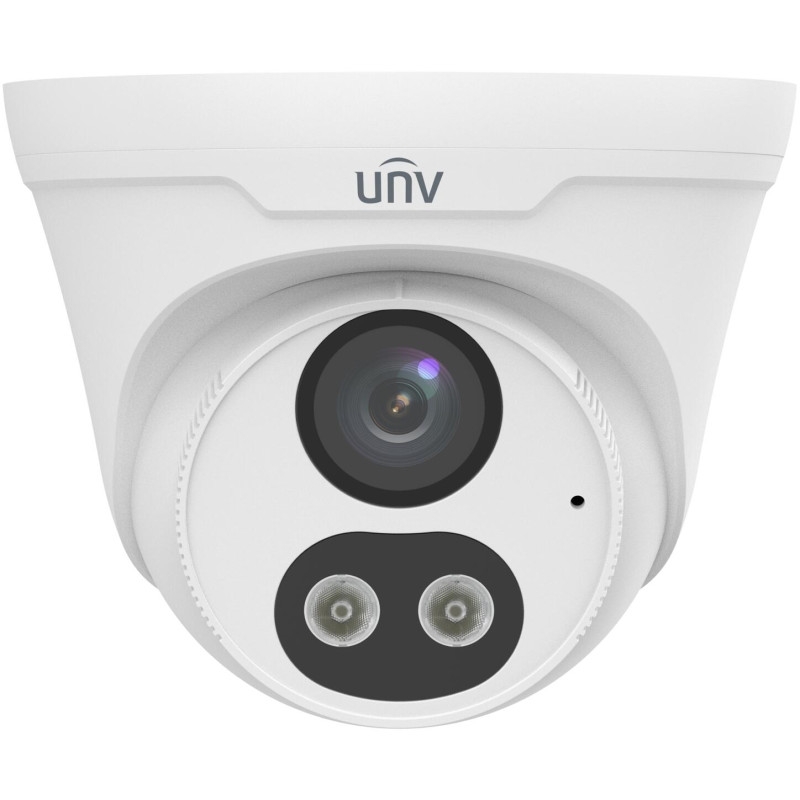

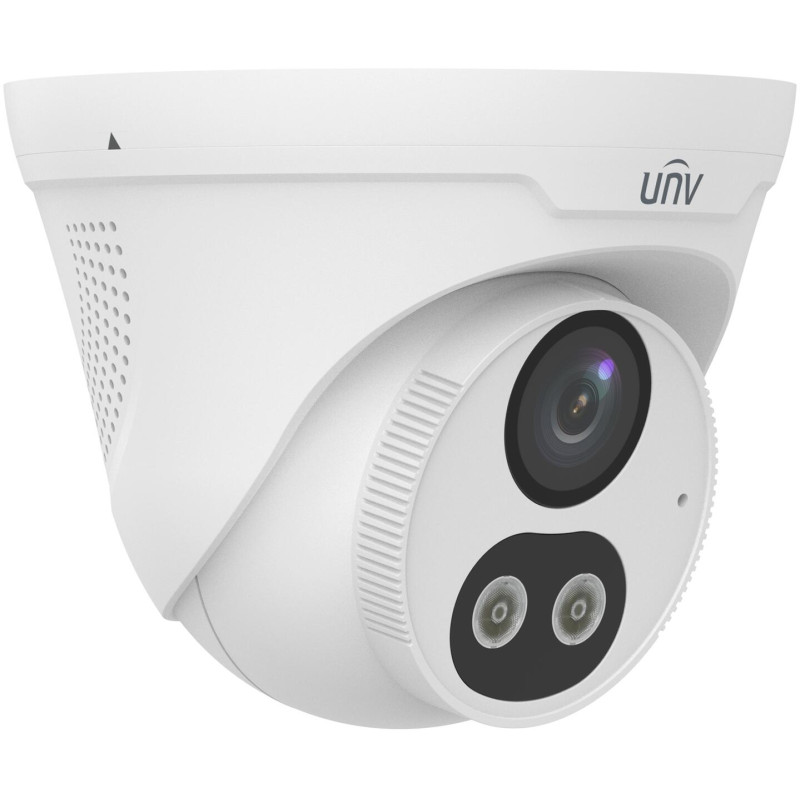

Uniview 8MP ColorHunter Fixed Dual-light Turret Network Camera with 2.8mm fixed lens
- Brand: Uniview
- Product Code: UN-IPC3618LE-ADF28KC-DL [#22]
- sku: UN-IPC3618LE-ADF28KC-DL
- Reward Points: 11
- Availability: In Stock ✓ Ready to ship!
- Qty available: 20
R2,105.88 inc. VAT
- Ex VAT: R1,831.20
- Price in reward points: 2106
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
Overview Summary:
The Uniview 8MP ColorHunter Dual-Light Turret Network Camera delivers ultra-high-definition video with intelligent dual-light technology for clear monitoring day and night. Featuring a 2.8mm fixed lens, PoE support, built-in microphone and speaker, IP67 weather protection, and support for up to 512GB microSD storage, it is a dependable solution for residential, commercial, and industrial surveillance.Designed for reliable performance in South African environments, this network camera provides advanced image quality, wide dynamic range, and efficient video compression for reduced bandwidth and storage usage. Buy now to upgrade your security system with a high-performance surveillance camera, or shop now for dependable protection.
Performance tier: High-End
Uses: Home security, business surveillance, warehouse monitoring, office security, retail monitoring, perimeter protection, parking area surveillance, commercial CCTV installations
Overview:
Uniview 8MP ColorHunter Fixed Dual-Light Turret Network Camera
The Uniview IPC3618LE-ADF28KC-DL is a professional 8MP network turret camera designed to deliver outstanding image quality in both daytime and low-light environments. Combining ColorHunter technology with dual-light illumination, this IP security camera captures vibrant colour images while intelligently switching between infrared and warm light for reliable surveillance. Its durable IP67-rated housing, built-in microphone and speaker, and PoE support make it an excellent choice for residential, commercial, retail, office, and industrial security installations.
Description:
The Uniview UN-IPC3618LE-ADF28KC-DL combines ultra-high-definition 8MP video, intelligent dual-light technology, and advanced image processing to provide dependable 24-hour surveillance. Equipped with a fixed 2.8mm lens, ColorHunter technology, true 120 dB WDR, built-in audio, and support for MicroSD storage up to 512GB, this camera delivers clear, detailed footage while remaining easy to install using a single PoE network connection.
The IPC3618LE-ADF28(40)KC-DL
8MP ColorHunter Fixed Dual-Light Turret Network Camera
- High quality image with 8 MP, 1/2.8-inch CMOS sensor
- 8 MP (3840 x 2160) at 20 fps; 5 MP (3072 x 1728) at 30/25 fps; 4 MP (2560 x 1440) at 30/25 fps; 1080P (1920 x 1080) at 30/25 fps
- Ultra 265, H.265, H.264 and MJPEG video compression
- 120 dB true WDR technology enables clear images in challenging lighting conditions
- Supports 9:16 corridor mode
- Built-in microphone and speaker
- Smart IR with up to 30 metres of night vision
- MicroSD card support up to 512GB
- IP67 weatherproof protection
- PoE power supply support
- 3-axis adjustable mounting
Features:
Outstanding 8MP Ultra HD Video
Capture highly detailed surveillance footage with an advanced 1/2.8-inch CMOS sensor delivering up to 3840 x 2160 resolution. The camera provides excellent clarity for identifying people, vehicles, and important events while maintaining smooth performance across multiple supported resolutions.
Reliable Day and Night Surveillance
ColorHunter technology works alongside intelligent dual-light illumination to produce vivid colour images in low-light conditions. Smart IR extends night vision up to 30 metres while warm light enhances colour accuracy whenever additional illumination is required.
Enhanced Image Performance
Advanced imaging technologies ensure consistent video quality across varying lighting environments. True Wide Dynamic Range reduces overexposed highlights and dark shadows, while digital noise reduction improves clarity in low-light scenes.
Key imaging technologies include:
- 120 dB True WDR
- 2D and 3D Digital Noise Reduction
- Smart IR illumination
- Dual-light technology
- Region of Interest (ROI) support
- Privacy masking with up to four configurable areas
Efficient Video Compression
Support for multiple compression standards helps reduce bandwidth and storage requirements without sacrificing image quality. Ultra 265 technology maximises storage efficiency, making the camera ideal for continuous recording.
Supported formats:
- Ultra 265
- H.265
- H.264
- MJPEG
Built for Professional Security Systems
The camera integrates easily into modern IP surveillance installations with dual-stream capability, onboard storage, Ethernet connectivity, and Power over Ethernet support. The built-in microphone and speaker add two-way audio capability for enhanced monitoring.
Connectivity and storage:
- 1 x RJ45 10M/100M Base-TX Ethernet port
- Dual video streams
- Built-in microphone
- Built-in speaker
- MicroSD card support up to 512GB
- PoE support
Flexible Installation Options
The compact turret design includes 3-axis adjustment for easy positioning during installation. An IP67-rated enclosure protects the camera against dust and water, making it suitable for both indoor and outdoor environments.
Technical Details
- Resolution: 8MP (3840 x 2160)
- Maximum frame rate: 20 fps at 8MP
- Image sensor: 1/2.8-inch CMOS
- Lens: Fixed 2.8mm
- Night vision: Dual-light with IR and warm light up to 30m
- Video compression: Ultra 265, H.265, H.264, MJPEG
- Wide Dynamic Range: 120 dB True WDR
- Corridor Mode: 9:16 supported
- Privacy masking: Up to 4 areas
- On-screen display: Up to 4 OSDs
- Detection: Basic detection
- Noise reduction: 2D and 3D DNR
- Storage: MicroSD up to 512GB
- Protection rating: IP67
- Power: PoE supported
- Network: 1 x RJ45 10M/100M Base-TX Ethernet
Ideal Applications
The Uniview UN-IPC3618LE-ADF28KC-DL is well suited for a wide variety of surveillance environments, including:
- Residential properties
- Retail stores
- Warehouses
- Office buildings
- Schools
- Commercial facilities
- Parking areas
- Industrial sites
Whether you are expanding an existing CCTV installation or deploying a new IP surveillance system, the Part Number UN-IPC3618LE-ADF28KC-DL provides dependable 8MP video quality, intelligent dual-light operation, advanced compression, and flexible installation for reliable security around the clock.
Specifications:
| Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC , however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
| Specifications | |
| Product Code | UN-IPC3618LE-ADF28KC-DL |
| Item | IPC3618LE-ADF28KC-DL |
| Camera | |
| Max Resolution | 8 MP |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0degrees to 360degrees, Tilt: 0degrees to 90degrees, Rotate: 0degrees to 360degrees |
| S/N | >56 dB |
| WDR | 120 dB |
| Lens | |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 98.7degrees |
| Field of View (V) | 53.9degrees |
| Field of View (D) | 103.6degrees |
| Lens Type | Fixed |
| DORI | |
| DORI Distance (Lens) | 2.8 mm |
| DORI Distance (Detect) | 87.0 m (285.3 ft.) |
| DORI Distance (Observe) | 34.8 m (114.2 ft.) |
| DORI Distance (Recognize) | 17.4 m (57.1 ft.) |
| DORI Distance (Identify) | 8.7 m (28.5 ft.) |
| Illuminator | |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 8 MP (3840 x 2160), max. 20 fps , 5 MP (3072 x 1728), max. 30 fps , 4 MP (2560 x 1440), max. 30 fps , 1080P (1920 x 1080), max. 30 fps , 720P (1280 x 720), max. 30 fps |
| Sub Stream: 1080P (1920 x 1080), max. 30 fps , 720P (1280 x 720), max. 30 fps , D1 (720 x 576), max. 30 fps , 640 x 360, max. 30 fps , 2CIF (704 x 288), max. 30 fps , CIF (352 x 288), max. 30 fps | |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Dual streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180degrees, 90degrees Clockwise, 90degrees Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Image Stabilization | N/A |
| Events | |
| Basic Detection | Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, APP |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | N/A |
| Network | 1 x RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) |
| FCC (FCC 47 CFR part15 B) | |
| Safety | CE LVD (EN 62368-1) |
| UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |
| Environment | CE-RoHS (2011/65/EU , (EU)2015/863) , WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 5.2 W(without speaker) |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø118 mm x 96 mm (Ø4.6" x 3.8") (Ø x H) |
| Weight | 0.32 kg (0.71 lb) |
| Material | Metal + Plastic |
| Working Environment | -30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| Web Client Language | 4 Languages: English, Russian, Spanish, Vietnamese |
