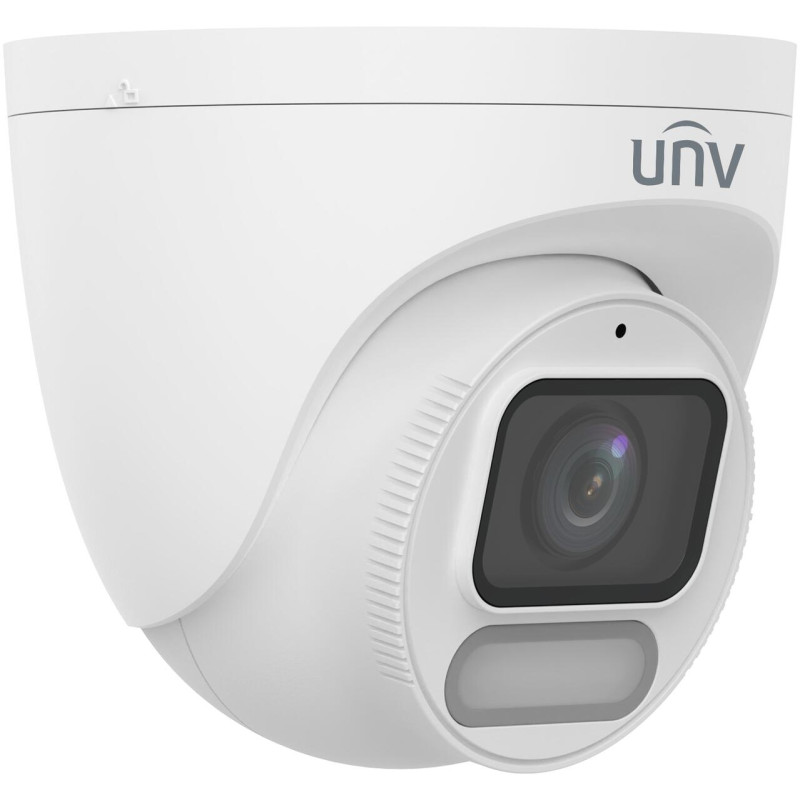

Uniview 4MP OwlView Wise-ISP fixed Warm Light Turret Network camera with 2.8mm Lens
- Brand: Uniview
- Product Code: UN-IPC3624LE-ADF28K-WP-L [#22]
- sku: UN-IPC3624LE-ADF28K-WP-L
- Reward Points: 7
- Availability: In Stock ✓ Ready to ship!
- Qty available: 79
R1,346.26 inc. VAT
- Ex VAT: R1,170.66
- Price in reward points: 1347
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
Overview Summary:
The Uniview 4MP OwlView Wise-ISP turret network camera delivers high-resolution 2560x1440 imaging with advanced low-light performance and warm light illumination for clear night-time monitoring. Its 2.8mm wide-angle lens and 120 dB WDR ensure balanced detail in both bright and dark environments, making it suitable for demanding security installations.Designed for reliable outdoor deployment, it supports PoE for simplified installation, IP67 weather protection, and efficient video compression for reduced storage usage. With built-in smart detection and microSD support up to 512GB, it provides flexible edge recording and stable surveillance performance. Buy now to upgrade your security setup with professional-grade monitoring capability.
Performance tier: Mid-range professional
Uses: Home security, business surveillance, outdoor perimeter monitoring, night-time surveillance, retail security, general CCTV installations
Overview:
The Uniview IPC3624LE-ADF28K-WP-L is a high-performance 4MP turret network camera designed for demanding indoor and outdoor surveillance applications. Equipped with a 1/1.8" CMOS sensor and a large F1.0 aperture lens, it captures bright, detailed footage even in challenging low-light conditions. Its OwlView Wise-ISP technology enhances color reproduction, image clarity, and smear reduction, making it ideal for around-the-clock monitoring.
Description:
The Uniview 4MP OwlView Wise-ISP Fixed Warm Light Turret Network Camera delivers exceptional image quality with 2560 x 1440 resolution, advanced low-light performance, and intelligent image optimization. Featuring a 2.8mm lens, 120 dB true WDR, built-in microphone, and warm light illumination up to 30 meters, this camera provides clear, colorful surveillance footage day and night. Support for Ultra 265, H.265, H.264, and MJPEG compression ensures efficient storage and bandwidth usage, while IP67 weather protection and PoE support simplify installation in a wide range of environments.
Features:
Enhanced Low-Light Performance
One of the standout advantages of this camera is its ability to maintain full-color imaging in extremely dark environments. The combination of OwlView Wise-ISP technology and the F1.0 lens allows the camera to gather more light, resulting in clearer faces, vehicles, and scene details after sunset.
Warm light illumination extends up to 30 meters, providing natural-looking nighttime images without the harsh appearance often associated with infrared-only systems.
Sharp 4MP Video Quality
With a maximum resolution of 2560 x 1440, the camera delivers crisp video suitable for identifying people, vehicles, and other important details. Multiple frame rate options are available to match different recording and network requirements.
Supported resolutions include:
- 4MP (2560 x 1440)
- 3MP (2304 x 1296)
- 1080P (1920 x 1080)
Reliable Imaging in Difficult Lighting
The integrated 120 dB true WDR helps balance bright and dark areas within the same scene. This is especially useful for entrances, loading bays, parking areas, and other locations where strong backlighting can make standard cameras struggle.
Flexible Recording and Storage
For efficient bandwidth and storage management, the camera supports:
- Ultra 265
- H.265
- H.264
- MJPEG
A built-in microSD card slot accepts cards up to 512GB, allowing local recording directly on the device.
Installation and Connectivity
The camera is designed for straightforward deployment with:
- 1 x RJ45 10/100 Mbps Ethernet port
- PoE support for power and data over a single cable
- 3-axis adjustment for flexible positioning
- IP67 weatherproof protection for outdoor use
Additional Smart Functions
To adapt to different surveillance environments, the camera also offers:
- Built-in microphone
- Dual video streams
- ROI (Region of Interest) support
- Up to 4 OSD overlays
- Up to 4 privacy mask areas
- 2D and 3D digital noise reduction
- Basic intelligent detection functions
- 9:16 corridor mode
Technical Details
Part Number / SKU: UN-IPC3624LE-ADF28K-WP-L
- Lens: 2.8mm fixed lens
- Image Sensor: 1/1.8" CMOS
- Maximum Resolution: 2560 x 1440
- Wide Dynamic Range: 120 dB true WDR
- Night Illumination: Warm light up to 30m
- Storage: MicroSD up to 512GB
- Protection Rating: IP67
- Power: PoE supported
- Audio: Built-in microphone
- Video Compression: Ultra 265 / H.265 / H.264 / MJPEG
The Uniview IPC3624LE-ADF28K-WP-L combines high-resolution imaging, exceptional low-light performance, and durable outdoor construction, making it a strong choice for homes, businesses, retail stores, offices, warehouses, and perimeter security applications.
Specifications:
| Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC , however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
| Specifications | |
| Product Code | UN-IPC3624LE-ADF28K-WP-L |
| Camera | |
| Max Resolution | 4 MP |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0003 Lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0degrees to 360degrees, Tilt: 0degrees to 75degrees, Rotate: 0degrees to 360degrees |
| S/N | > 52 dB |
| WDR | 120 dB |
| Lens | |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 107.6degrees |
| Field of View (V) | 58.4degrees |
| Field of View (D) | 126.4 degrees |
| Lens Type | Fixed |
| DORI | |
| DORI Distance (Lens) | 2.8 mm |
| DORI Distance (Detect) | 43.5 m (142.6 ft.) |
| DORI Distance (Observe) | 17.4 m (57.1 ft.) |
| DORI Distance (Recognize) | 8.7 m (28.5 ft.) |
| DORI Distance (Identify) | 4.3 m (14.1 ft.) |
| Illuminator | |
| Supplemental Light | Warm light |
| Light On/Off Control | Auto/Manual |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4 MP (2560 x 1440), max. 25 fps , 3 MP (2304 x 1296), max. 30 fps , 1080P (1920 x 1080), max. 30 fps , 720P (1280 x 720), max. 30 fps |
| Sub Stream: 720P (1280 x 720), max. 30 fps , D1 (720 x 576), max. 30 fps , 640 x 360, max. 30 fps , 2CIF (704 x 288), max. 30 fps , CIF (352 x 288), max. 30 fps | |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Dual streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Smart Illumination | Support |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180degrees, 90degrees Clockwise, 90degrees Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Image Stabilization | N/A |
| Intelligent | |
| People Counting | N/A |
| Statistical Analysis | N/A |
| Events | |
| Basic Detection | Motion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, APP |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 x RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) |
| FCC (FCC 47 CFR part15 B) | |
| Safety | CE LVD (EN 62368-1) |
| UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |
| Environment | CE-RoHS (2011/65/EU , (EU)2015/863) , WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 3.5 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø118 mm x 106 mm (Ø4.6" x 4.2") (Ø x H) |
| Weight | 0.41 kg (0.90 lb) |
| Material | Metal + Plastic |
| Working Environment | -30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
