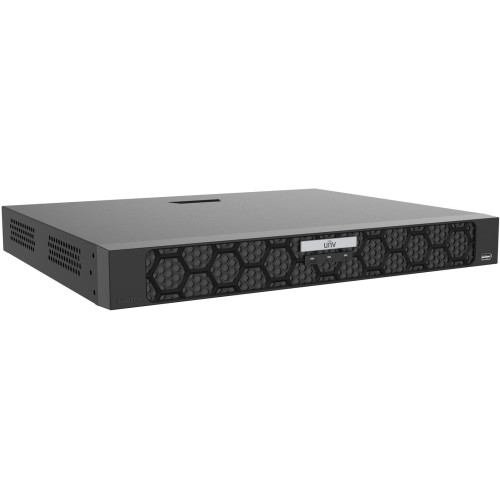

Uniview UN-NVR502-16B-IQ 16 channel Network Video Recorder
- Brand: Uniview
- Product Code: UN-NVR502-16B-IQ [#22]
- sku: UN-NVR502-16B-IQ
- Reward Points: 16
- Availability: In Stock ✓ Ready to ship!
- Qty available: 9
R3,205.20 inc. VAT
- Ex VAT: R2,787.13
- Price in reward points: 3206
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
Overview Summary:
The Uniview UN-NVR502-16B-IQ is a professional 16-channel Network Video Recorder designed for reliable IP surveillance systems. It supports Ultra 265, H.265 and H.264 video compression, up to 16MP recording resolution, dual SATA hard drive bays with up to 8TB per drive, and advanced smart analytics including vehicle detection and people counting. Buy now for a dependable surveillance recording solution for commercial and residential security installations across South Africa.With dual Gigabit Ethernet ports, HDMI 4K output, VGA output, ONVIF compatibility, and support for up to 128 remote users, this NVR delivers flexible deployment and easy system management. Shop now to build or expand your CCTV system with a high-performance Uniview recorder.
Performance tier: Professional
Uses: IP CCTV surveillance, commercial security, office monitoring, warehouse security, retail stores, schools, residential estates, remote video monitoring, people counting, vehicle detection
Overview:
Uniview UN-NVR502-16B-IQ 16-Channel 4K Network Video Recorder
The Uniview UN-NVR502-16B-IQ is a powerful 16-channel network video recorder designed for professional IP surveillance installations. Built to support high-resolution recording of up to 16MP cameras, it delivers reliable video storage, smooth playback, and advanced AI capabilities. With support for Ultra 265, H.265, and H.264 compression, the recorder helps reduce bandwidth and storage usage while maintaining excellent image quality.
Description:
Designed for businesses, commercial properties, and security professionals, the Uniview UN-NVR502-16B-IQ combines intelligent video management with dependable recording performance. It supports a wide range of ONVIF-compatible IP cameras, offers dual display outputs, and provides advanced analytics such as vehicle detection and people counting. The Part Number UN-NVR502-16B-IQ is an excellent choice for users looking for a scalable and efficient 16-channel surveillance recording solution.
Features:
Built for Modern IP Surveillance
This network video recorder supports up to 16 IP camera channels and is compatible with cameras using ONVIF Profile S, Profile G, Profile T, and RTSP protocols. It records footage at resolutions of up to 16 megapixels, ensuring clear, detailed video suitable for demanding security applications.
Ultra 265, H.265, and H.264 compression technologies help maximise storage capacity while reducing network traffic, making the recorder ideal for continuous recording environments.
Display and Video Output
Independent HDMI and VGA outputs allow flexible monitor configurations for live viewing and playback.
Key display capabilities include:
- HDMI output up to 4K (3840 x 2160) at 30Hz
- VGA output up to 1920 x 1080 at 60Hz
- Independent HDMI and VGA display operation
- 16-channel synchronous playback for efficient video review
Intelligent Analytics
Integrated AI functions help improve security monitoring and operational awareness.
Available intelligent functions include:
- Vehicle detection
- People counting
- Advanced event recording support
- ANR technology for improved recording reliability during network interruptions
Storage and Recording
The recorder provides generous storage capacity for long-term video retention and dependable operation.
Storage highlights:
- 2 SATA hard drive interfaces
- Supports drives up to 8TB each
- Maximum total storage capacity of 16TB
- Reliable recording with Automatic Network Replenishment (ANR)
Connectivity and Audio
The Uniview UN-NVR502-16B-IQ offers flexible connectivity for integration into professional surveillance systems.
Connection options include:
- 2 x Gigabit RJ-45 self-adaptive Ethernet ports
- 1 x USB 3.0 port
- 2 x USB 2.0 ports
- 1 x RS485 interface
- 8 alarm input channels
- 2 alarm output channels
- 1 RCA audio input
- 1 RCA audio output
- Two-way audio support
- Supports up to 128 remote users
Key Technical Details
- Part Number / SKU: UN-NVR502-16B-IQ
- Supports 16 IP camera channels
- Recording resolution up to 16MP
- Ultra 265, H.265 and H.264 video compression
- ONVIF Profile S, Profile G, Profile T and RTSP compatibility
- Independent HDMI and VGA outputs
- 16-channel simultaneous playback
- AI functions including vehicle detection and people counting
- Cloud upgrade support
- Dual SATA storage with up to 8TB per drive
- Dual Gigabit Ethernet interfaces
Ideal Applications
The Uniview UN-NVR502-16B-IQ is well suited for retail stores, offices, warehouses, educational facilities, commercial buildings, industrial sites, and multi-site security deployments where dependable 16-channel IP recording, intelligent analytics, and efficient storage management are essential.
Specifications:
| Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC , however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
| Specifications | |
| Product Code | UN-NVR502-16B-IQ |
| NVR502-09B-IQ | NVR502-16B-IQ |
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | Smart Off : 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30 |
| Smart On : 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 16 x 720P@30 | |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page. |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | Smart Off : 320Mbps |
| Smart On : 160Mbps | |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, IPv6, IPv4, UPnP, HTTPS |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Video/Audio Input | |
| IP Video Input | 16-ch |
| RCA Audio Input | 1-ch |
| Peripheral Input | |
| Ip Speaker | 16-ch |
| POS | All channels |
| Video/Audio Output | |
| HDMI Output | 4K (3840 x 2160)/30 Hz, 1920 x 1080/60 Hz, 1920 x 1080/50 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz |
| VGA Output | 1920 x 1080/60 Hz, 1920 x 1080/50 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 1/4/6/8/9/16 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Two-way Audio | |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot (max. 8 MP (3840 x 2160) video resolution, with 1080P snapshot resolution) |
| Recording | |
| Recording Resolution | 16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Synchronous Playback in Local | 16-ch |
| Smart Function | |
| Smart by IPC | All channels (up to 8 images/s in total) Face Detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Smart by NVR | Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
| Smart by NVR Analyzer Mode | Single Mode (), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack), Modes cannot active simultaneously, only one mode can active at a time. |
| VCA Search | AcuSearch, AcuTrack, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| AcuSearch | |
| Acu Search Performance | All channels with UNV SIP/UMD Camera |
| AcuTrack | |
| Acu Track Performance | All channels with UNV SIP/UMD Camera |
| by NVR | Up to 8-ch with UNV Face Detection Camera, Up to 2-ch with normal camera (UNV and Third-part brand, 2-ch 2MP, 1-ch 4MP) |
| Search by Image | Support |
| Plate Comparison | |
| Vehicle Number Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIP | |
| SIP by NVR with normal cameras | Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K) |
| UMD | |
| UMD by NVR with normal cameras | Up to 8-ch with normal camera (UNV and Third-part brand, 8-ch 2MP, 4-ch 4MP, 2-ch 4K) |
| Capacity of Smart Snapshots | |
| Capacity of Snapshot Records | 2 millions records for face snapshot, 2 millions records for vehicle snapshot, 3 millions records for SIP, 2 millions records for video Metadata |
| Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded |
| GUI Language | |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40degreesC) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 1 |
| External Interface | |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0, 1 x USB3.0 |
| RS485 | 1 |
| RS232 | N/A |
| Alarm In | 8-ch |
| Alarm Out | 2-ch |
| Power Supply | DC 12 V/3 A |
| Power Switch | Support |
| Working Environment | |
| Working Temperature | -10 degreesC to 50 degreesC (14 degreesF to 122 degreesF) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 12W |
| Dimensions | |
| Weight (without HDD) | ≤ 2Kg (4.4lb) |
| Height | 1U |
| Dimensions | 380mm x 315mm x 53mm (15.0" x 12.4" x 2.1") |
| Certification | |
| Certification | CE , FCC , UL , RoHS , WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
