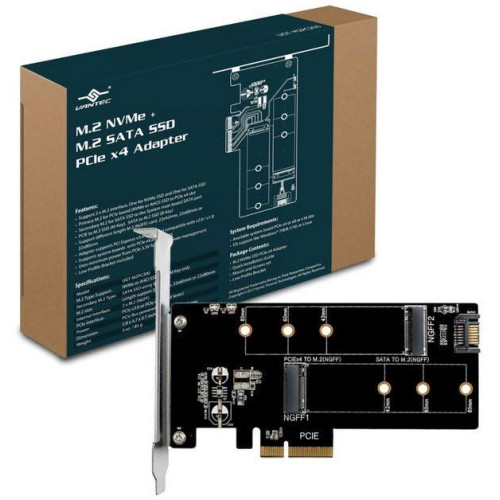

Vantec M.2 NVMe + M.2 SATA SSD PCIe X4 Adapter
- Brand: Vantec
- Product Code: VANTEC UGT-M2PC200 ADP [#1]
- sku: VANTEC UGT-M2PC200 ADP
- Reward Points: 1
- Availability: In Stock ✓ Ready to ship!
- Qty available: 9
R275.77 inc. VAT
- Ex VAT: R239.80
- Price in reward points: 276
Vantec M.2 NVMe + M.2 SATA SSD PCIe X4 Adapter
Specifications for this model: VANTEC UGT-M2PC200 ADP
Full specifications for the entire range
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
The specifications below may differ from the model's specifications. Please view the above short specification block to verify which features apply in this model. E&OE.
Overview:
The M.2 NVMe + M.2 SATA SSD PCIe x4 Adapter is a unique product with 2 very different M.2 Slot. It can offer the fastest boot or data access thru the NVMe SSD and at the same time provide very fast storage through the M.2 SATA SSD. It provides the link between PCIe 4 lanes of data path straight to the NVMe SSD resulting in super-fast data transfer and another M.2 interface for your M.2 SATA SSD. This adapter allows for flexible installation of an M.2 (NGFF) of different size like 42, 60, or 80mm in length with varying capacity. This M.2 adapter will give you the best performance possible for your system.
Features:
- Support 2 x M.2 interface, One for NVMe SSD and One for SATA SSD
- Primary M.2 for PCIe based (NVMe or AHCI) SSD to PCIe x4 slot
- Secondary M.2 for SATA SSD to the System main board SATA port
- PCIE to M.2 SSD (M-Key), SATA to M.2 SSD (B-Key)
- Support different length M.2 (NGFF) card, 22x42mm, 22x60mm or 22x80mm
- Adapter supports PCI Express v3.0 Specs and compatible with v2.0 / v1.0
- Supports system boards with PCIe x4,x8,x16 slots
- Uses minimum power from PCIe 3.3V for better power management
- Low Profile Bracket included
System Requirements:
- Available system board PCIe x4 or x8 or x16 slot
- OS support like Windows® 7/8/8.1/10, or Linux
Specifications:
| Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC , however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
| Specifications | |
| Product Code | VANTEC UGT-M2PC200 ADP |
| Model | UGT-M2PC200 |
| Primary M.2 Type | NVMe or AHCI SSD using M Key only |
| Secondary M.2 Type | SATA SSD using B Key |
| M.2 size | Length support 22x42mm, 22x60mm or 22x80mm |
| Internal Interface | 2 x M.2 (NGFF) |
| PCIe Interface | PCIe v3.0 or PCIe v2.0 x4 (4 lanes) |
| Power | PCIe Bus powered (3.3V) |
| Dimensions | 5.8 x 4.7 x 0.7 inches / 148 x 120 x 17 mm |
| Weight | 3 oz. / 85 g |
