ATEN 17" 8 Port PS/2-USB VGA LCD KVM Combo KVM

Aten CL5708M 17" 8 Port PS/2-USB VGA LCD KVM Combo KVM with an extra Console Port and USB Peripheral support, 1280x1024 @ 75 Hz Resolution, 17" TFT-LCD LCD module

Overview:

8-Port PS/2-USB VGA Single Rail LCD KVM Switch
CL5708

• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with 17", 17.3"or 19" LED-backlit LCD monitor in a Slideaway housing
• Daisy-chain up to 31 additional units - control up to 256 computers from a single console
• USB port allows each computer to access USB peripherals (inapplicable to CL5708MW)

Features:

• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
• Integrated KVM console with 17", 17.3"or 19" LED-backlit LCD monitor in a Slideaway housing
• Available with or without fingerprint identification reader¹
• Space saving technology - up to two consoles (one bus) control up to 8 or 16 computers
• Daisy-chain up to 31 additional units - controls up to 256 computers from a single console
• Dual interface - supports computers and console with PS/2 or USB keyboards and mice
• USB port allows each computer to access USB peripherals² (inapplicable to CL5708MW)
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Multiplatform support - Windows, Linux, Mac, and Sun
• Supports multimedia USB keyboards for PC, Mac and Sun
• Auto PS/2 and USB interface detection
• Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
• Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
• Superior video quality - supports resolutions of up to 1280 x 1024 @ 75 Hz (CL5708M / CL5708FM / CL5708N) and 1920 x 1080 @ 60 Hz (CL5708MW)
• No software required -convenient computer selection via front panel pushbuttons, hotkeys and multilingual onscreen display (OSD) menus
• Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel LED indicates station's position
• Port names automatically reconfigured when station sequence is changed
• Two level password security - only authorized users can view and control computers
• Supports one administrator and four user accounts with separate profiles
• Auto Scan mode enables continuous monitoring of user-selected computers
• Broadcast supports - commands from the keyboard can be broadcast to all available computers on the installation
• Hot pluggable
• Beeper on / off via hotkey and OSD
• Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
• Optional rack mount kits available including easy installation options
• Keyboard Language supports: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional ChineseNote:

1. The fingerprint reader can be used as an alternate means of logging in to the switch. From 1 to 4 fingers can be scanned for each user and the administrator, with any one of the recorded fingerprints used to log in.
2. The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections (inapplicable to CL5708MW).

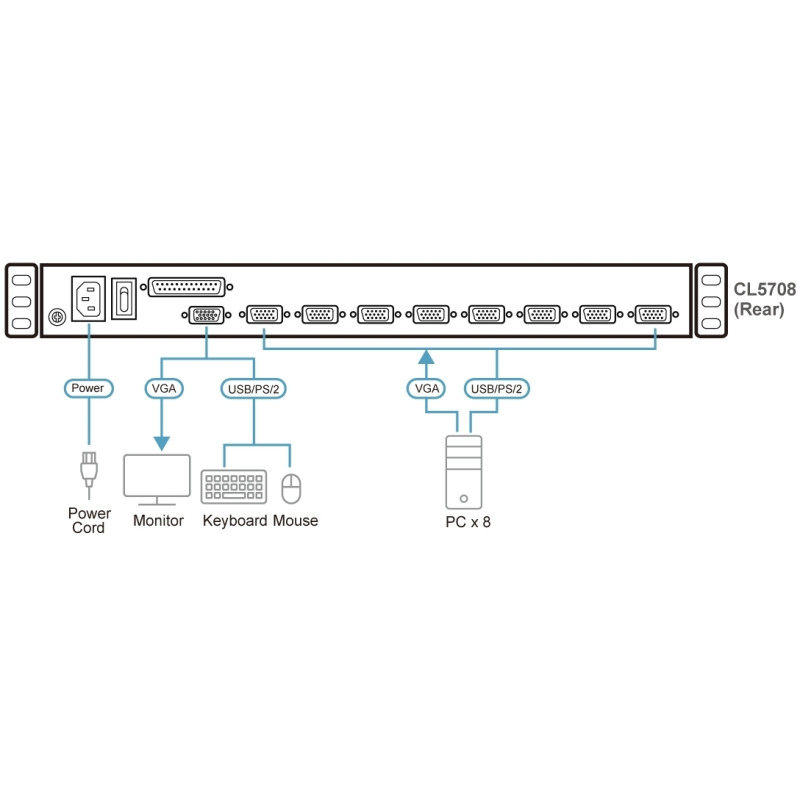

The CL5708 Slideaway - LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

The CL5708 offers a space-saving , streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5708 offers the option to use a fingerprint identification system for controlling access to both the CL5708 itself and the servers it commands.

The CL5708 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.

Package Contents

• 1x CL5708 LCD KVM Switch with standard Rack Mount Kit
• 2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
• 1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
• 1x Firmware Upgrade Cable
• 1x Power Cord (AC Power Models)
• 1x User Instructions

Specifications:

Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC , however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CL5708M
Function	CL5708M
Computer Connections
Direct	8
Maximum	256 (via Daisy-chain)
Port Selection	OSD, Hotkey, Pushbutton

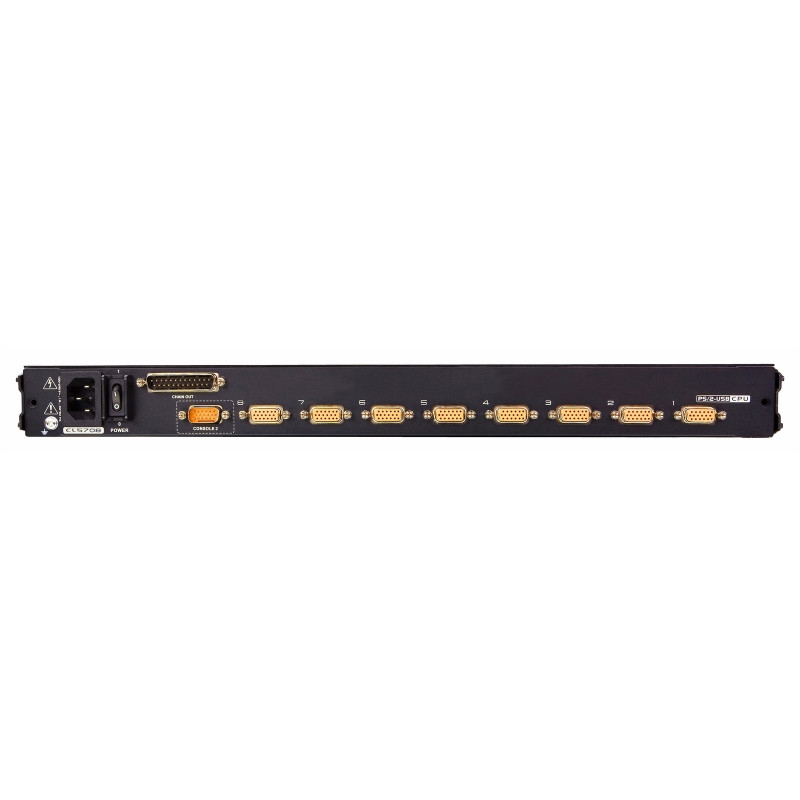

Connectors
KVM Ports	8 x SPHD Female (Yellow)
Daisy Chain Ports	1 x DB-25 Male
Firmware Upgrade	1 x RJ-11 Female
Power	1 x IEC 60320/C14
External Console Ports	1 x SPHD Male (Yellow)
External Mouse Port	1 x USB Type A Female (Front)
USB Port	1 x USB Type A Female
Switches
Port Selection	2 x Pushbutton
Station Selection	2 x Pushbutton
Reset	1 x Semi-recessed Pushbutton
Firmware Upgrade	1 x Slide Switch
Power	1 x Rocker Switch
LCD Control	4 x Pushbutton
LCD Power	1 x LED Pushbutton
LEDs
Online	8 (Orange)
Port ID	2 x 7-segment LED Display (Orange)
Station ID	2 x 7-segment LED Display (Orange)
Power	1 (Dark Green)
Lock	1 x Num Lock (Green)
	1 x Caps Lock (Green)
	1 x Scroll Lock (Green)
LED Illumination Light	1 x LED Illumination Light
Panel Spec
LCD Module	17" TFT-LCD
Resolution	1280 x 1024 @ 75 Hz
Response time	5 ms
Viewing Angle	170° (H), 160° (V)
Pixel Pitch	0.264 mm x 0.264 mm
Support Color	16.77M colors
Contrast Ratio	1000 : 1
Luminance	250 cd/m²
Video
Input Video Resolution	up to 1920 x 1200 @ 60 Hz
	1280 x 1024 @ 75 Hz, DDC2B
Scan Interval	1-255 seconds
Emulation
Keyboard / Mouse	PS/2, USB
Maximum Input Power Rating	100-240V AC, 50/60Hz, 1A
Power Consumption	AC110V:23.9W:125BTU/h
	AC220V:25.1W:130BTU/h
	Note:
	- The measurement in Watts indicates the typical power consumption of the device with no external loading.
	- The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0-40°C
Storage Temperature	-20-60°C
Humidity	0-85% RH, Noncondensing
Physical Properties
Housing	Metal + Plastic
Rail Type	Single Rail
Weight	13.47 kg ( 29.67 lb )
Dimensions (L x W x H)	48.00 x 64.27 x 4.40 cm
	(18.9 x 25.3 x 1.73 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
