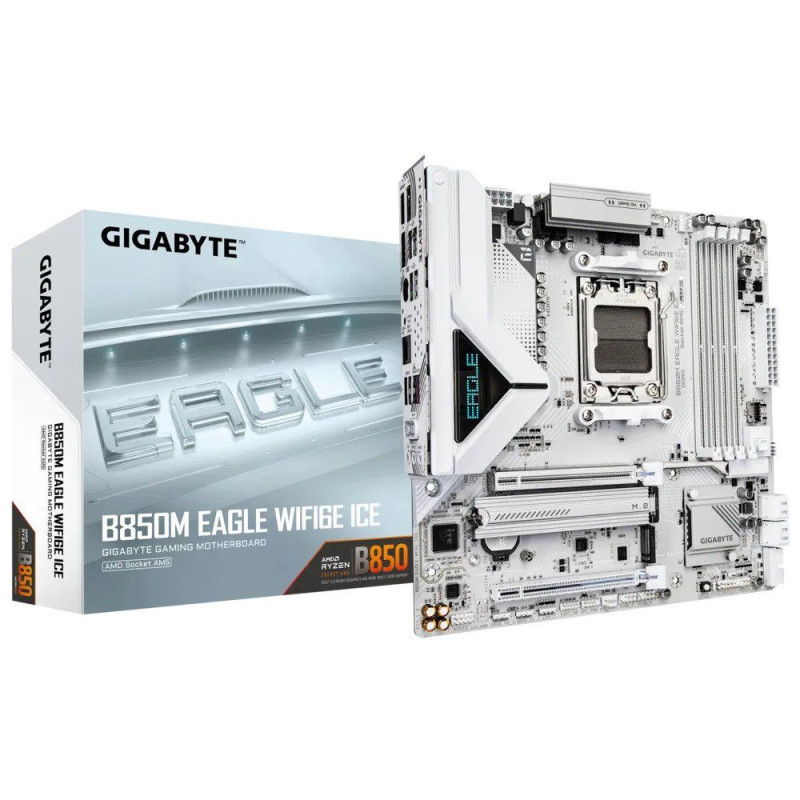

Gigabyte B850M EAGLE WIFI6E ICE B850 Chipset AMD Ryzen AM5 Socket Micro ATX Motherboard with WiFi

Gigabyte B850M EAGLE WIFI6E ICE B850 Chipset AMD Ryzen AM5 Socket Micro ATX Motherboard, Support for DDR5 8200(O.C)/ 8000(O.C)/ 7950(O.C)/ 7900(O.C)/ 7800(O.C)/ 7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400(O.C)/ 6200(O.C)/ 6000(O.C)/ 5800(O.C)/ 5600(O.C)/ 5200/ 4800/ 4400 MT/s memory modules, 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 1 x system fan header, 1 x system fan/water cooling pump header, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 4 x SATA 6Gb/s connectors, 2 x M.2 Socket 3 connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C?® header, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper, 1 x HDMI port, 2 x DisplayPorts, 1 x Q-Flash Plus button, 1 x PS/2 keyboard/mouse port, 1 x USB 3.2 Gen 2 Type-A port (red), 1 x USB Type-C?® port, with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 2 x antenna connectors (2T2R), 3 x audio jacks, Micro ATX Form Factor, 24.4cm x 24.4cm

Features:

• X3D Turbo Mode : Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 8+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking : 2.5 GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
• Extended Connectivity : HDMI, 2*Displayport
• PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support

X3D Turbo Mode
X3D Turbo Mode's unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode.

Auto CPU & DDR5 Memory Boost
With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency.

One-Click Acceleration:
Enhance CPU & DDR5 speeds with a single click.

• Real time Analyze
• OC accuracy UP
• EZ to Pro

Fast AI Performance
Accelerate AI processing for greater performance

Up to 8% AI Performance*

• Accelerated AI decision-making
• Boosted reinforcement learning
• Streamlined language processing

Boost CPU & Memory Performance
Raise system speed and performance.

Up to 9% CPU & Memory Performance Boost

• Tailored-overclocking for your CPU and memory
• Faster data transfer and application loading
• Improved multitasking performance
• Optimized overall system performance

Maximize performance in a snap
Enable users to easily become overclocking experts through a simple interface.

Smart & Safe overclocking
Protect your motherboard through multiple over-temperature and over-current safeguards.

• Over Temperature Protection
• Over Current Protection
• Over Voltage Protection
• Over Power Protection
• Under Voltage Protection
• Short Circuit Protection

Less Power Usage Optimal power-efficiency
With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.

AI-Driven PCB Technology-Redefining PCB Design with Artificial Intelligence
AI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.

AI-ViaFusion Technology
Optimized vias & pads for signal integrity

AI-Trace Technology
Smart routing for peak performance

AI-Layer Technology
Tailored stackups for enhanced functionality

Key Features:

• AI-Generated Design Recipes
• AI-Driven Simulation
• AI-Powered Signal Verification
• Single and cross-layer signal optimization

AI-ViaFusion™ Technology - AI-Powered Excellence in Signal Integrity
Reduction in Signal Reflection Up to 28.2%. AI-ViaFusion, an AI-assisted via optimization technology, determines optimal via and pad sizes across PCB areas. This technology enhances cross-layer signal integrity and transmission efficiency, outperforming traditional design methods.

Best-in-class Signal Quality

• Superior signal transmission efficiency
• Dramatically reduced signal reflection
• Elevated signal quality and reliability
• Enhanced cross-layer PCB signal performance

AI-ViaFusion Technology - AI-Engineered Via Design Formula
AI-ViaFusion is a proprietary AI-generated hybrid via structure design. This PCB technology, validated through AI simulations and testing, aims to enhance high-speed signal transmission.

Optimized Via Design
Varied via sizes for optimized signal and power paths

Driven Pad Optimization
Custom pad sizes for performance and production balance

Precision Impedance Matching
Via & pad sizes selected for optimal signal impedance

Minimized Insertion Loss
Optimized vias reduce signal loss

Enhanced Return Loss
Precision impedance matching reduces reflections

Optimized Eye Diagram
Wider eye opening improves signal integrity

AI-ViaFusion Technology - AI-Driven Revolution in PCB Design
Vias (Vertical Interconnect Access) are critical for multi-layer PCB connectivity. Via size significantly impacts signal integrity, affecting capacitance, reflections, and crosstalk.

Strategic Via Sizing
Optimized for varied signals across PCB

Enhanced Impedance Matching
Precise control via machine learning

Space Optimization
Maximized layout efficiency with signal integrity

AI-Trace Technology-Revolutionizing PCB Routing with AI
AI-Trace Technology transforms PCB design by leveraging AI to optimize trace routing, resulting in enhanced performance and signal integrity.

Fiber Weave Effect Mitigation
Optimized signal synchronization

Shielded Memory Routing
Optimized signal shielding and precision

Impedance-Optimized Topology
Refined traces with minimal resistance

Isolated Memory Routing
Optimized trace layout and layer separation

Daisy-Chained Routing
Innovative design eliminates signal bottlenecks

Mitigating Fiber Weave Effect with AI-Trace Technology
Fiber Weave Effect in high-speed PCBs stems from varying dielectric constants of epoxy resin and glass fibers, this causes varying signal propagation speeds, leading to signal integrity issues such as crosstalk and jitter. AI-Trace Technology implements innovative routing angles to mitigate this effect.

Benefits of Mitigation:

• Reduces signal distortion
• Improves transmission reliability
• Supports higher data rates
• Enhances overall system stability

AI-Layer Technology -Next-Generation Multi-Layer PCB Design
AI-Layer Technology creates innovative layer materials for multi-layer PCBs, delivering unparalleled performance.

Core Innovation:

• AI-Optimized Layer Customized Design
• AI-optimized layer design
• Unique material for each layer
• AI-verified signal integrity
• Tailored PCB for peak performance

Key Features:

• AI-optimized PCB layer and design material
• Server-Grade Low Loss PCB*
• Enhanced 2X Copper Technology

HyperTune BIOS - AI-Driven Advanced BIOS Optimization Technology

• BIOS Efficiency Boost Up to 95%+
• HyperTune BIOS uses AI to optimize signals. The 800 series implements this for peak efficiency, enabling significant memory clock speed boosts and enhanced overall performance.

AI-Enhanced Performance Optimization

• Adaptive signal strength tuning
• AI tuning accuracy exceeds 95%
• Continuous learning advances performance limits

Infinite Memory Performance
EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Steady Power
Eagle Series with steady power keeps your AI operation smooth.

Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.

8 VCORE Phases DrMOS 60A
Unlock the full power of your multi-core CPU for unmatched performance.

2 SOC Phase DrMOS 60A
Optimized for integrated GPU performance and memory management within the CPU.

2 MISC Phases Ppak
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Comprehensive Thermal
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

"Stay Cool, Game On"
High-coverage MOSFETs with integrated molded heatsinks

4X larger surface area for enhanced heat dissipation
With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.

5 W/mK thermal pad for efficient thermal conductivity

• High-performance thermal pad
• Keeps your system cool and running at peak efficiency

Multi-cut design with channels for improved airflow

• More grooves, more airflow.
• Better airflow, cooler system.

True one-piece heatsink design

• Outperforms competitors' multi-piece solutions
• Integrated design and expanded surface area deliver exceptional cooling performance

M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.

High Current Support

• Supports both PWM and DC fans, plus water cooling pumps
• Up to 24W (12V x 2A) capacity per fan header
• Built-in over-current protection

Precision Control

• Multiple temperature and fan speed points
• Customizable fan curves for optimal performance

Dual Curve Mode

• Choose between slope and stair modes
• Tailor cooling to your specific needs and preferences

Fan Stop Technology

• Fans can be completely turned off at low temperatures
• Ensures silent operation during light loads

Enhance Fan Curve UI

• 7 adjustable control points
• Expanded speed graph for precise adjustments

Slope/Stair Dual Graph Mode

• Slope mode: Smooth fan speed curve
• Stair mode: Steady speeds within temperature ranges
• Easy switching between modes

Manual Input

• Fine-tune fan speeds for optimal performance
• Precise control for enthusiasts

EZ Tuning

• Quick setup with 4 temperature and fan speed points
• Automatic optimization of fan curve

Fan Curve Profile

• Save personalized settings to BIOS ROM
• Maintain custom settings through BIOS updates

Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

EZ-Latch Designs
User-friendly designs simplifying the assembly process.

M.2 EZ-Latch Click
screwless installation for M.2 heatsink

M.2 EZ-Latch Plus
screwless installation for M.2 SSDs

PCIe EZ-Latch Plus
Easy ejection with single click for graphics cards

EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.

Optimal DRAM Installation Indicator
The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.

Q-FLASH Auto Scan
The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.

Q-FLASH PLUS
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.

All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

2.5G LAN
design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.

802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Benefit of Wi-Fi 6E
Dedicated spectrum in 6GHz band for less interference
4X better network capacity, no traffic jams especially in those dense area with lots of devices
Network efficiency increase for better user experience

Wi-Fi 6E bring you the Ultimate VR experience!
Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.

Wi-Fi 6E compared to Wi-Fi 5 provide…

• 40% faster speed for smoother gaming/streaming experience
• 50% higher resolution for video game related content
• Better battery life for VR devices

Wi-Fi 6E Advantage
Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.

High-End Audio Capacitors
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

Audio Noise Guard
Essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.

PCIe UD Slot
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.

1.7X
stronger shearing test

3.2X
stronger retention force test

Reduced Signal Degradation
with SMD Technology PCIe UD Slot

UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

Solid Pins
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.

Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.

Multi-Theme
Multiple BIOS skin with newly exclusive grayscale mode

AIO Fan Control
Adjust AIO fan speed in the BIOS

Multi-Theme
Now users can choose different BIOS themes with one simple click It not only delivers an immersive user experience but also offers a brand new user-friendly theme: Grayscale.

AIO Fan Control
Enable non-windows users to adjust AIO fan speed in the BIOS before entering the OS.

Refined BIOS Interface
GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability.

Quick Access Function
GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.

GIGABYTE Control Center
A unified software platform encompassing multiple GIGABYTE product.

RGB Fusion
Personalize the RGB illumination on your motherboard and connected peripherals.

Spotlight your flair
Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.

Varnish your shine
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.

AORUS & HWiNFO Co-branded OSD
AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.

Default AORUS skin
When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well.

Memory Timings Monitor
Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.

Detailed BIOS information
GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.

Specifications:

Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC , however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	MB-GB850MEW+W
CPU	AMD Socket AM5, support for:
	AMD Ryzen 9000 Series Processors/
	AMD Ryzen 8000 Series Processors/
	AMD Ryzen 7000 Series Processors
Chipset	AMD B850
Memory	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO ) and Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics support:
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3, and HDR.
	** Support for native HDMI 2.1 TMDS compatible ports.
	- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
	* Support for DisplayPort 1.4 version.
	(Graphics specifications may vary depending on CPU support.)
	Support for up to triple-display at the same time
Audio	Realtek Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek Wi-Fi 6E RTL8852CE
	- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.3
	- Support for 11ax 160MHz wireless standard
	(Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
	AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
	AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
	AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
	AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
	AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU:
	- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
	- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	CPU+USB 2.0 Hub:
	- 4 x USB 2.0/1.1 ports on the back panel
	Chipset:
	- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
	- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	1 x system fan header
	1 x system fan/water cooling pump header
	3 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	4 x SATA 6Gb/s connectors
	2 x M.2 Socket 3 connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C header, with USB 3.2 Gen 2 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x reset button
	1 x reset jumper
	1 x Clear CMOS jumper
Back Panel Connectors	1 x HDMI port (Note)
	2 x DisplayPorts (Note)
	1 x Q-Flash Plus button
	1 x PS/2 keyboard/mouse port
	1 x USB 3.2 Gen 2 Type-A port (red)
	1 x USB Type-C port, with USB 3.2 Gen 2 support
	2 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	1 x RJ-45 port
	2 x antenna connectors (2T2R)
	3 x audio jacks
	(Note) Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
	Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
