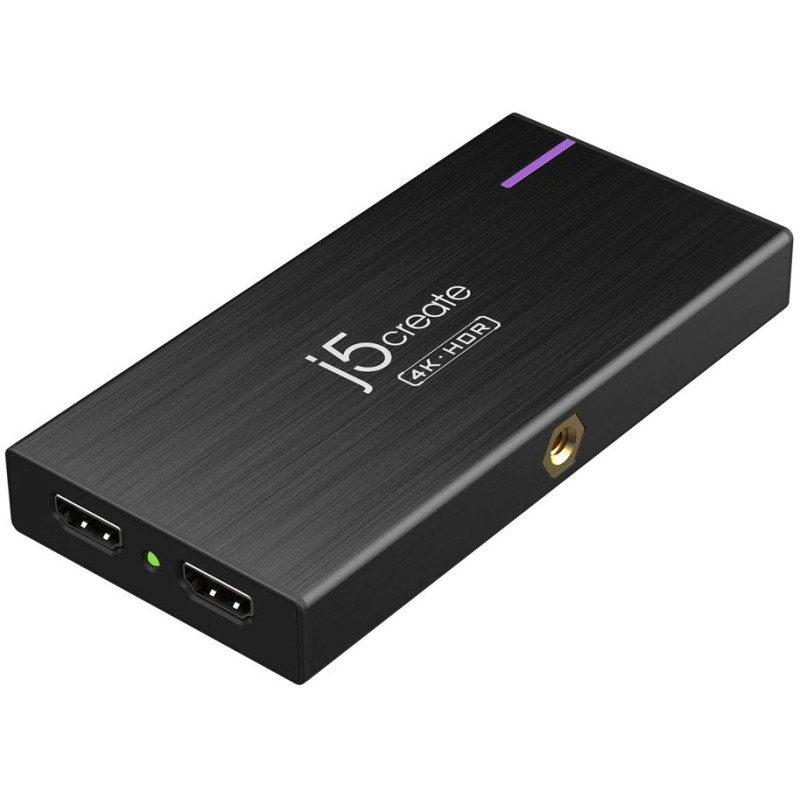

J5-Create JVA14 4K Game Capture Station

J5-Create JVA14 4K video capture for live streaming (for video conference or live broadcast) - HDMi capture (4K@30FPS, FHD@120FPS), 3x audio modes (mic/mix/hdmi), 3.5mm audio-in out 2xHDMi (in out) type-C with 60w PD3.0 type-C Gen2/10GBPs to host, 4-pole aux input for game consoles, support daisy-chain for multiple capture streaming, with color LED indicator for USB speeds, aluminum housing

Overview:

The JVA14 4K Game Capture Station is a capture device designed to stream and record your gameplay. It supports 4K @ 30 FPS video capture with 4K @ 60 FPS passthrough for consoles capable of 4K resolution. It has a 3.5 mm Audio In port and Mic In port allowing a headset to be connected for live commentary streaming on PlayStation™ 4 / 5, Xbox™ Series X / S, Xbox™ One X / S. It is fully compatible with OBS™ and other video streaming software, making it perfect for live streaming. The JVA14 is plug-and-play and compatible with macOS® and Windows® laptops and desktops.

Features:

• Uncompressed 4K@30 Capture + 4K@60 Loop Out
• 4K60 pass-through support (Uncompressed)
• Power Only: Orange
• No driver installation required
• HDR Passthrough: Supports resolutions up to 4K @ 60 Hz, 1440p @ 144 Hz, and 1080p @ 240 Hz
• Ultra-low latency stream with high-performance USB-C® 3.2 connection
• LED indicator to keep track of USB™ speeds and compression rates
• USB™ 3.0 connection: Purple (Uncompressed)
• USB™ 2.0 connection: Blue (Uncompressed)

System Requirements:

• Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended)
• Windows® 7 or later
• macOS® 10.12 or later
• Android™ 8.1 or later
• CPU: Intel® Core™ i7 6700HQ & above
• GPU: NVIDA® GTX 960M & above
• RAM: 8 GB or higher

Specifications:

Copyright belongs to the respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC , however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	GC-JVA14
Hardware
Host Connector	1 - USB-C 3.2 Female
Video Input	1 - HDMI Female
Video Output	1 - HDMI Female
Audio Input	1 - 3.5mm AUX
Audio Output	1 - 3.5mm AUX
Video Switcher	N/A
Audio Switcher	N/A
Power Source	Bus-powered
Ports	1 - USB-C 3.2 Gen 1
	1 - HDMI Input
	1 - HDMI Output
	1 - Audio Out (3.5 mm)
	1 - Mic In (3.5 mm)
Performance
Maximum Capture Resolution	3840 x 2160
Maximum Passthrough Resolution	3840 x 2160
Maximum Capture Refresh Rate	4K30 FPS, 2K60 FPS, 1080p120 FPS
Maximum Passthrough Refresh Rate	4K60 Hz HDR, 2K144 Hz HDR, 1080p240 Hz HDR
Audio Channel	2.1 via HDMI
Audio Frequency	48 kHz
Microphone	Stereo microphone supported
	24-bit sigma-delta ADC
Headset	2.1 Stereo
Format	USB 3.0: RGB / YUV4:2:2 / YUV4:2:0
	USB 2.0: YUV4:2:0
Maximum Capture Capability	USB 3.0: 3840 x 2160 @ 30 USB 2.0: 1280 x 720 @ 30
HDR Supported	Yes
Power
Power Delivery	60W via USB-C
Power Consumption	≤900 mA
Physical Specifications
Color	Black
Enclosure Type	Aluminum
Cable Length	3.3 ft (1m)
Product Height	2.5 in. (63.7 mm)
Product Width	5.3 in. (134.6 mm)
Product Depth	0.7 in. (18.4 mm)
Product Weight	5.03 oz (142.5g)
Storage Temperature	14 to 149°F (-10 to 65°C)
Storage Humidity	< 85% non-condensing
Operation Temperature	32 to 104°F (0 to 40°C)
Operation Humidity	< 80% non-condensing
